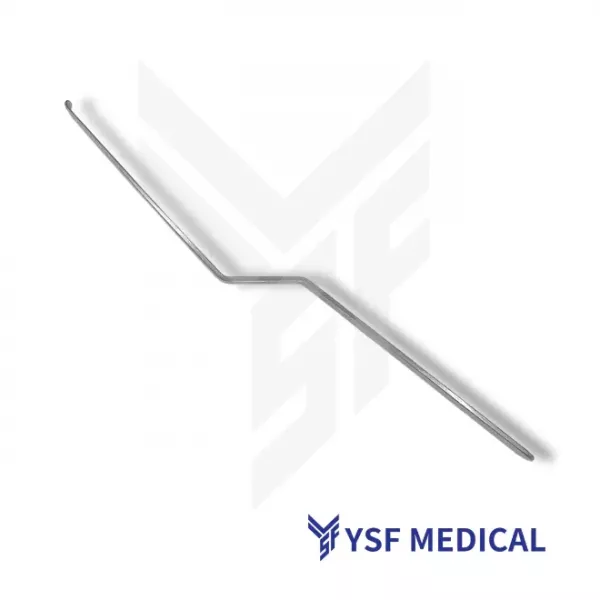

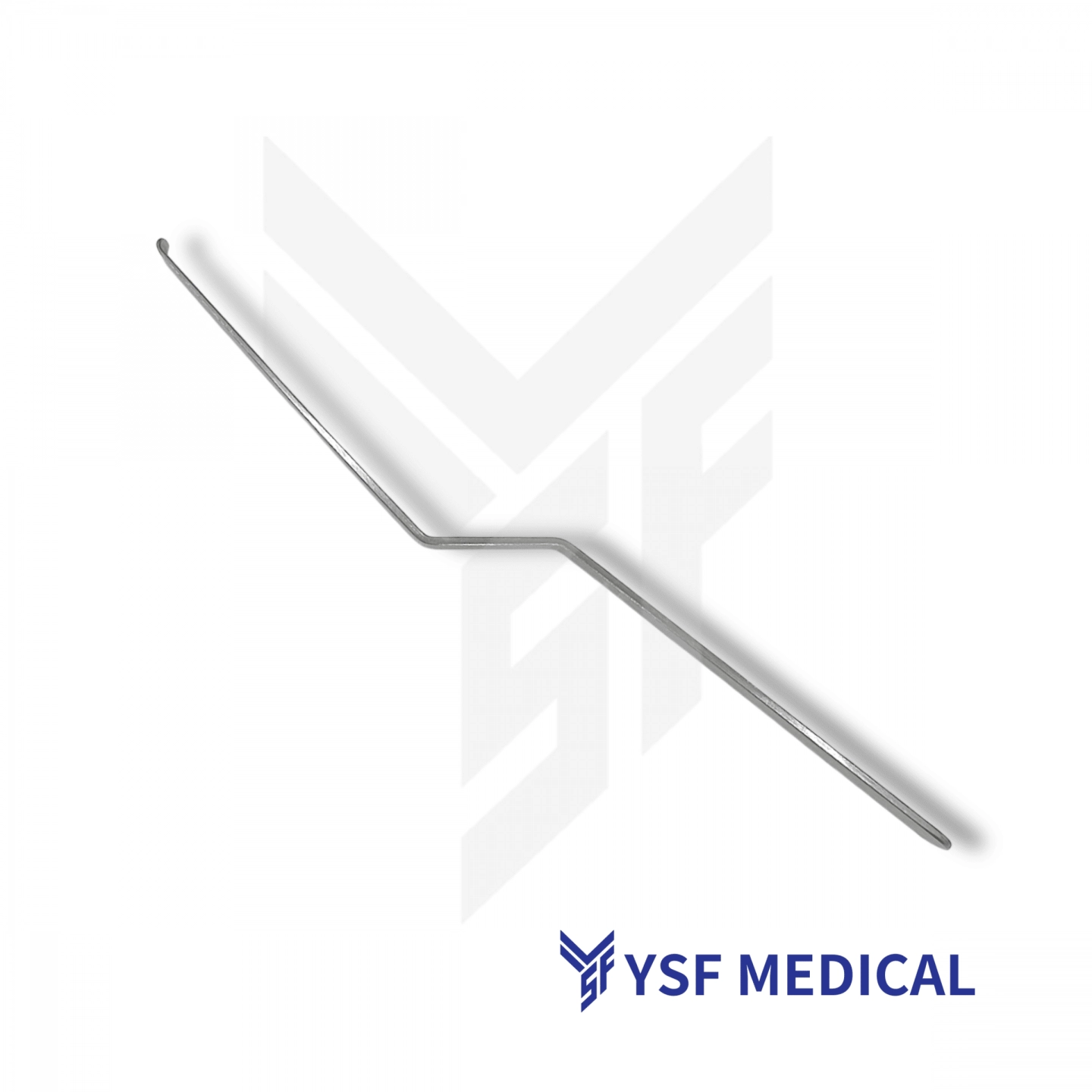

Surgical Nerve Hooks: Precision Instruments for Protecting Nerves

A nerve hook is a surgical instrument used to retract and protect neural tissue. It is commonly employed in spinal, joint, and trauma-related procedures. By providing stable and precise handling, nerve hooks assist surgeons in maintaining a clear operative field while minimizing unnecessary pressure or traction on neural structures during dissection and manipulation.

Nerve hooks are available in straight or curved designs and may also feature double-ended configurations to accommodate various surgical access requirements. These instruments are typically made from medical-grade metals or stainless steel and undergo fine surface finishing to ensure smooth operation, stable handling, and minimal irritation to surrounding tissues.

As surgical procedures advance toward greater precision and minimally invasive techniques, nerve hooks have been continuously refined in terms of tip angle, curvature design, and handle ergonomics. These enhancements enable them to provide stable support within narrow and anatomically complex operative spaces. Despite their compact size, nerve hooks play a critical role in protecting nerves and maintaining a smooth, efficient surgical workflow.

Definition and Clinical Significance of Surgical Nerve Hooks

Surgical nerve hooks are designed to balance precision, safety, and structural stability, supporting surgeons working within complex anatomical environments.
Their clinical value is primarily demonstrated in the following aspects:

• Enhanced Surgical Precision:
  Assist surgeons in clearly identifying and steadily retracting neural tissue within complex, multi-layered anatomical structures.
• Reduced Procedural Risk:
  Smooth edges, controlled flexibility, and a stable handle design help minimize irritation and trauma to nerves and surrounding tissues.
• Broad Clinical Applications:
  Suitable for a wide range of orthopedic and surgical procedures involving neural structures, including spinal, joint, and peripheral nerve surgeries.

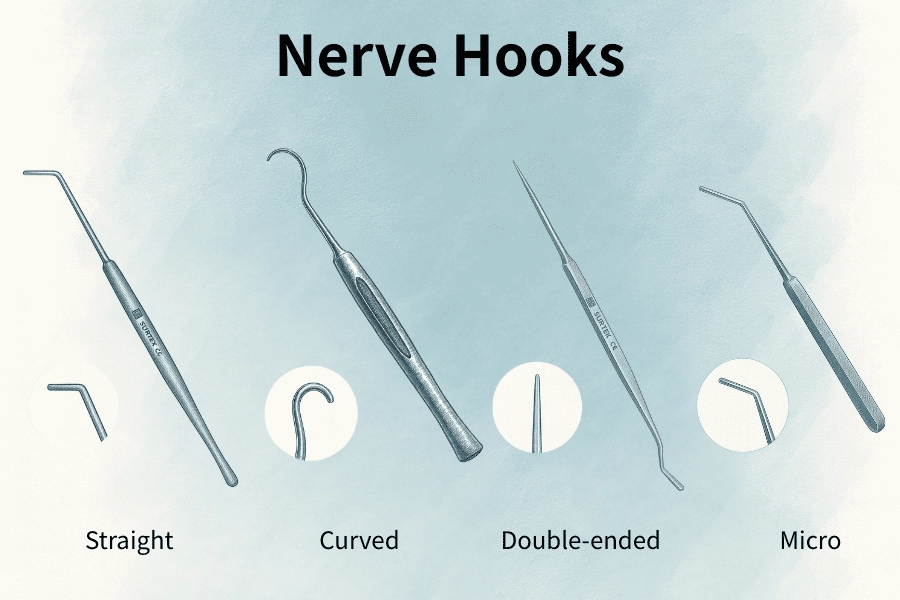

Common Types of Surgical Nerve Hooks

Surgical nerve hooks are available in various types and can be customized in terms of specifications and design to meet specific customer requirements, depending on surgical needs and clinical environments.

• Straight Nerve Hooks:
  Designed for superficial or linear nerve retraction, these instruments are manufactured with an emphasis on tip polishing quality and smooth edge finishing to minimize localized pressure concentration.

• Curved Nerve Hooks:
  Designed for use in deep anatomical structures or procedures with limited visual access, such as operations within the spinal canal or joint cavities. Common curvature angles include 30°, 45°, and 60°, and can be customized to meet specific surgical requirements.

• Double-ended Nerve Hooks:
  Feature different hook shapes or sizes on each end of a single instrument, allowing for quick switching during procedures. The design prioritizes balanced weight distribution and overall stability to ensure precise handling.

• Micro Nerve Hooks:
  Designed for microsurgical and high-precision applications, such as peripheral nerve repair. The tip widths typically range from 1 to 2 millimeters, necessitating exceptionally high manufacturing accuracy and consistency.

Key Considerations for Surgeons When Selecting Nerve Hooks

In the design and manufacturing of nerve hooks, the following key specifications must be carefully considered to ensure they meet clinical operational requirements:

• Tip Design and Safety:
  Common tip configurations include ball-shaped, flat, or blunt rounded designs. All require meticulous polishing to remove burrs or sharp edges, thereby minimizing the risk of tissue irritation or injury.
• Flexibility and Structural Strength:
  Nerve hooks should offer adequate flexibility to conform to tissue while maintaining sufficient structural strength to prevent permanent deformation or fatigue during use.
• Ergonomics and Handling Stability:
  The design of the handle directly impacts operational stability and comfort during extended use. An ergonomic design enhances control accuracy and overall handling precision.
• Surface Finish and Cleaning Reliability:
  Nerve hooks are typically made from medical-grade stainless steel and undergo electropolishing or passivation treatments to enhance corrosion resistance, improve cleaning efficiency, and ensure consistent performance after repeated sterilization cycles.

Clinical Applications of Nerve Hooks

Different surgical procedures require variations in the size and design of nerve hooks. Common clinical applications include:

• Spinal Surgery:Used for the retraction and protection of nerve roots and the spinal cord, these instruments typically have working lengths ranging from approximately 12 to 15 cm, providing effective access within the spinal canal.

• Joint Surgery:
  Used to protect the surrounding nerves and vascular structures during hip or knee procedures. These applications typically require wider hook tips combined with shorter instrument lengths.

• Peripheral Nerve Surgery:
  Applied in procedures such as hand nerve repair and carpal tunnel surgeries, these applications require high-precision micro nerve hooks to enable delicate and controlled manipulation.

Conclusion and Trends in Manufacturing Development

Surgical nerve hooks continue to evolve toward greater precision, lightweight construction, and optimized structural design. In addition to medical-grade stainless steel, some models now incorporate titanium alloys to reduce weight and enhance handling flexibility, while maintaining the necessary level of biocompatibility.

As the demand for minimally invasive procedures and precise surgical manipulation continues to grow, nerve hook design trends increasingly emphasize thin-walled structures and refined handling characteristics. These enhancements enable instruments to provide stable and predictable support within confined operative spaces. Moving forward, nerve hooks will continue to be developed using advanced manufacturing processes and precision engineering, allowing brand owners to meet diverse clinical requirements for instrument performance and consistency.
