PEEK Materials Overview: Medical Applications and Manufacturing Guide
PEEK (Polyether Ether Ketone) is revolutionizing the standards of modern medical devices. With a modulus of elasticity similar to that of human bone, excellent biocompatibility, and outstanding radiolucency, this high-performance polymer has become the preferred material for spinal fusion cages, trauma fixation systems, and precision surgical instruments.
This guide, authored by medical device manufacturing experts at YSF MEDICAL, is grounded in international standards such as ISO 10993, ASTM F2026, and published clinical studies. It offers a comprehensive analysis of PEEK’s key advantages, certification requirements, and manufacturing processes. Covering everything from material selection to quality assurance, we integrate over 30 years of industry experience with the latest clinical data to provide practical insights for professionals in procurement, R&D, and manufacturing.
Key Insights:
1PEEK constitutes 50% of the global interbody fusion device market and boasts a clinical success rate exceeding 90%.
2Compared to titanium alloys, PEEK significantly reduces stress shielding, thereby helping to extend the service life of implants.
3Advanced CNC machining and rigorous quality control are essential to ensuring the safety and performance of PEEK medical devices.
Whether you're a procurement leader evaluating new material options or an R&D team seeking a reliable manufacturing partner, this guide offers evidence-based recommendations and practical expertise to help you make informed decisions in the rapidly expanding PEEK medical device market.。
Imagine a spinal implant that works in harmony with the body, mimicking natural bone rather than feeling like a cold, rigid piece of metal. This is the transformation that PEEK (Polyether Ether Ketone) is bringing to the medical field.
1What is PEEK? A Comprehensive Guide to Its High-Performance Applications in Medical and Engineering Fields
PEEK (Polyether Ether Ketone) is a semi-crystalline, high-performance thermoplastic polymer belonging to the PAEK (Polyaryletherketone) family. Since its introduction in 1978 and commercialization in the 1980s, it has become a critical engineering material in the aerospace, automotive, chemical, and medical industries. PEEK combines high mechanical strength with excellent chemical resistance. It has a glass transition temperature of approximately 143°C, a melting point around 343°C, and a Young's modulus of about 3.6 GPa, enabling it to maintain outstanding performance even under high-temperature conditions. Most importantly, PEEK is radiolucent in X-ray, CT, and MRI imaging, making it uniquely suited for medical implant applications.
Beyond its groundbreaking use in medical implants, PEEK is highly valued across multiple high-demand industries for its strength, thermal stability, and chemical resistance. In aerospace, it serves as a lightweight alternative to metals in engine components, cable insulation, and structural parts. In automotive engineering, PEEK is utilized in transmission gears, seals, and fuel system components, where it endures high friction and elevated temperatures. In electronics and semiconductor manufacturing, its excellent electrical insulation and chemical resistance make it ideal for connectors and wafer handling systems. In the energy and oil industries, PEEK is employed in seals, valves, and pump components, ensuring long-term reliability under high pressure, high temperature, and corrosive environments. With advancements in high-temperature 3D printing, PEEK is also emerging as a key material for producing customized implants and complex structural parts.
2From Titanium Alloys to PEEK: A Key Turning Point in Implant Materials
For the past three decades, titanium alloys have been considered the gold standard for orthopedic implants. However, they also present several clinical limitations. Stress shielding can occur because titanium implants are much stiffer than bone, leading to reduced mechanical loading on surrounding bone tissue and long-term bone loss. Imaging artifacts are another concern, as titanium produces white shadows in X-ray and MRI scans, making it difficult to evaluate bone healing. Postoperative imaging and follow-up treatments are often compromised as a result.
The introduction of PEEK offers innovative solutions to these challenges. To evaluate PEEK's clinical advantages over conventional titanium alloys, it is essential to compare the two materials in terms of their elastic modulus, imaging compatibility, and overall clinical performance.
Property
Titanium Alloys
PEEK
Clinical Significance
Elastic
Modulus
Approximately 110 GPa, which is significantly higher than that of bone.
The material has a tensile strength of 3.6 to 4.0 GPa, which can be increased to up to 18 GPa when reinforced with carbon fiber, approaching the strength of cortical bone.
Reduces bone loss and enhances fusion outcomes.
Imaging Compatibility
Creates artifacts and obscures the assessment of bone healing.
Fully radiolucent on X-ray, CT, and MRI imaging.
Enables physicians to monitor recovery in real time.
Clinical Performance
Fusion rate is approximately 87%.
Fusion rate of up to 94%
Enhances surgical success rates and reduces the risk of complications.
Table 1: Comparison of Properties Between PEEK and Titanium Alloy Implants
A comparison of material properties clearly demonstrates that PEEK outperforms conventional titanium alloys across several key metrics. Most notably, its elastic modulus is closer to that of natural bone, which helps minimize stress shielding. Additionally, its excellent imaging compatibility offers unprecedented convenience for postoperative monitoring.
In recent years, numerous clinical studies have provided robust scientific evidence supporting the use of PEEK in medical implants. To systematically evaluate the clinical performance of PEEK compared to other implant materials, researchers have conducted extensive comparative studies focusing on critical factors such as biocompatibility, fusion rates, and imaging compatibility.
Study / Year
Materials Compared
Research Focus
Key Findings
Source
Kurtz & Devine, 2007
PEEK vs. Metallic Implants: A Comparative Analysis
Biocompatibility and Material Properties
PEEK has an elastic modulus similar to that of natural bone, which helps reduce stress shielding.
Table 2. Clinical Studies Comparing PEEK and Titanium Implants
Multiple studies have confirmed that PEEK offers significant advantages in imaging compatibility. Fusion rates are comparable to those of titanium, although each material has distinct characteristics.
With an elastic modulus closer to that of natural bone, PEEK effectively reduces stress shielding and demonstrates greater potential for long-term applications. Taken together, these findings indicate that PEEK implants not only match the performance of traditional metal implants but also offer clear advantages in key properties, opening new possibilities for the development of advanced medical devices.
"Is PEEK material truly safe for the human body?"This is the question on every medical device procurement manager's mind. As an orthopedic implant manufacturer, we aim to explain the biocompatibility requirements for PEEK in a clear and straightforward manner.
1ISO 10993 Biocompatibility Testing: The Essential "Passport" for Materials Entering the Human Body
When discussing biocompatibility, we are essentially assessing how a material interacts with human tissue. Imagine a stranger entering your home, you would want to know if they are safe and whether they might cause harm. Similarly, before any medical material is introduced into the human body, we must ensure it does not provoke adverse reactions.
ISO 10993 is the globally recognized standard for assessing the biocompatibility of medical devices. It provides a comprehensive framework for managing the biological risks associated with medical materials. The standard comprises 23 parts, covering everything from overall assessment frameworks to specific testing methods. This extensive system serves as a complete "safety manual" for materials, offering guidance tailored to different types of medical devices. Essentially, ISO 10993 functions as a "passport" for materials entering the body: without passing these evaluations, a material cannot be approved for market entry.
Core Principle of the Standard: In the ISO 10993 series, biocompatibility is defined as "the ability of a medical device or material to elicit an appropriate host response in a specific application.”
2Why Is Biocompatibility So Important?
In the medical device field, appearing safe does not necessarily mean a device is truly safe. A material may perform well under laboratory conditions, but once introduced into the human body, it can still pose significant risks. For example, it might release toxic substances that damage cells, trigger allergic or inflammatory reactions, cause tissue necrosis or foreign body responses, affect blood clotting, or interfere with normal physiological functions.
These potential risks underscore that selecting and validating medical materials cannot depend on a single experimental result. Comprehensive biocompatibility testing and clinical validation are essential to ensure genuine safety and reliability. Rigorous testing, regulatory review, and long-term clinical follow-up are crucial to guaranteeing that a medical device is not only seemingly safe but truly safe.
3Core Biocompatibility Tests: Four Essential Evaluations
Degree of irritation to the skin and mucous membranes
Minimal or no irritation occurs.
Protects soft tissue integrity
Implantation Response
ISO 10993-6
How Tissues Respond After Implantation
No abnormal tissue response observed.
Ensures the long-term safety of the implant.
Table 3. Overview of PEEK Biocompatibility Test Items
This table summarizes the four core biocompatibility tests that PEEK must pass for medical applications. Each test corresponds to the relevant ISO standard and includes clearly defined acceptance criteria to ensure the material's safety and compatibility within the human body. Cytotoxicity testing serves as the foundational assessment for all medical devices, providing essential reference points for subsequent evaluations.
ISO 10993-1 provides an assessment matrix that classifies medical devices based on the nature and duration of body contact. Essentially, it establishes different levels of safety evaluations for materials according to their varying risk profiles.
Type of Contact: Surface contact, externally communicating, implanted devices
Duration of Contact: Temporary (≤ 24 hours), short-term (24 hours to 30 days), long-term (> 30 days)
Contact Sites: Skin, mucous membranes, blood, tissue, etc.
5Biocompatibility Testing: Ensuring Safety from Laboratory Research to Clinical Application
Biocompatibility testing is not a one-time procedure but a systematic evaluation process. It should be conducted within the framework of risk management, beginning with an assessment of device characteristics, material composition, manufacturing processes, and clinical use.
For PEEK materials, this implies:
Understanding the nature of the material requires careful consideration of its chemical structure, purity, additives, and other essential characteristics.
Evaluating contact scenarios: implantation site, duration of contact, and contact area
Identifying potential risks, including toxicity, sensitization, and irritation.
Designing a Testing Strategy: Selecting Appropriate Test Methods and Standards
Performing an integrated risk assessment by making safety judgments based on all collected data.
This process functions as a customized for each medical device, ensuring it can perform safely and effectively within the human body without causing adverse effects. Only after successfully passing this rigorous evaluation can PEEK materials be the to enter clinical applications.
From our experience, an imprecise choice of processing method can cause part costs to vary by as much as tenfold. If supplier evaluation is not conducted carefully, an entire batch of products could be scrapped. These are the hard-earned lessons we have learned in PEEK manufacturing, and this guide shares our practical insights.

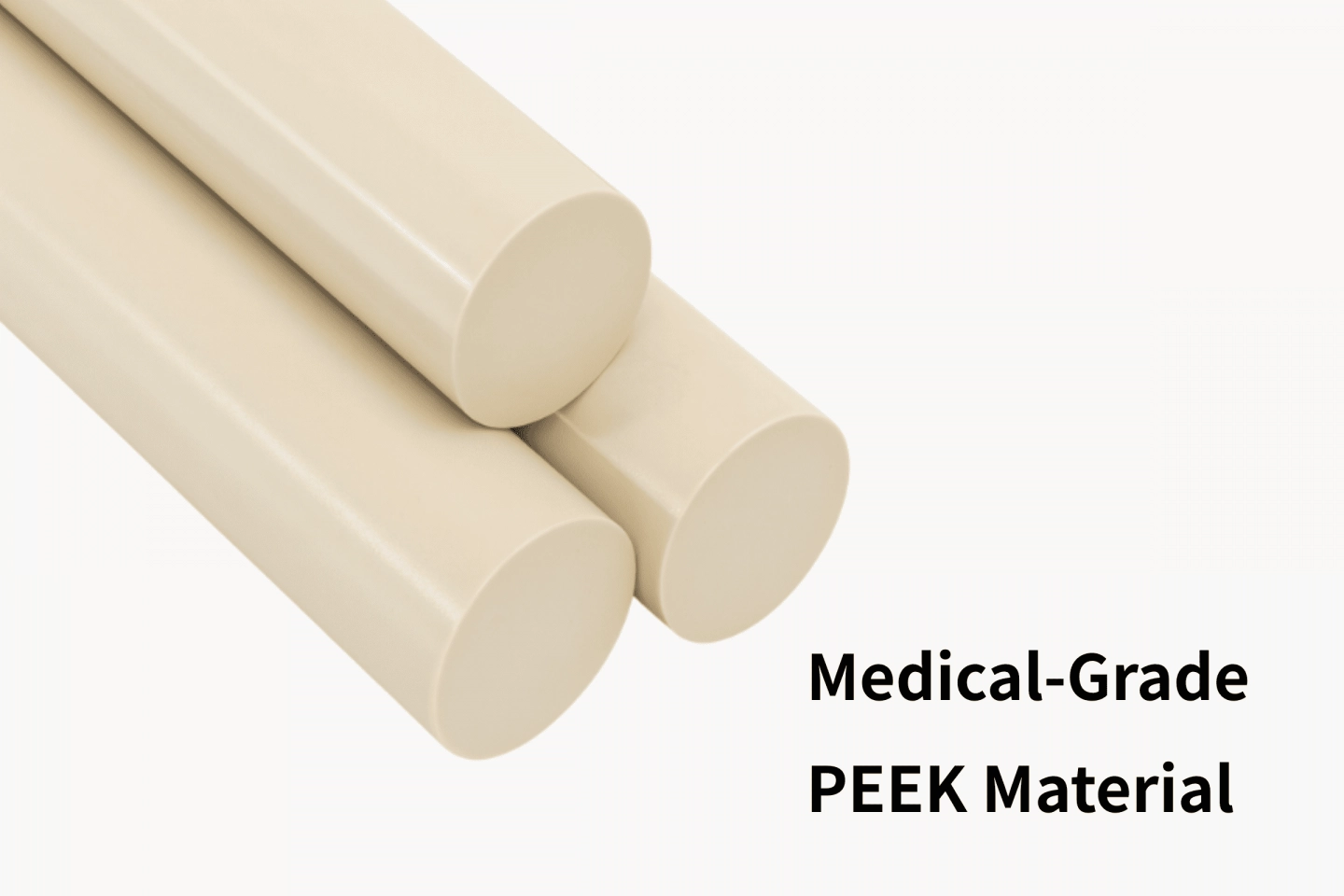

1PEEK Raw Material Selection Strategy
Choosing PEEK raw materials is similar to selecting ingredients for a recipe, as different grades are suited to various processing methods. The market is currently dominated by four major suppliers, each offering distinct advantages.
Invibio– The "Rolls-Royce" of Medical PEEK. This UK-based brand has over 20 years of clinical use, with approximately 15 million implants worldwide made from PEEK-OPTIMA® Implantable Medical Grade PEEK Polymer. Its greatest advantage is the comprehensive regulatory support documentation (Master Access File), which can significantly shorten your product certification timeline. PEEK-OPTIMA Natural is suitable for long-term implants, while PEEK-OPTIMA HA Enhanced (with hydroxyapatite) promotes bone integration.
Victrex – Industrial Expertise Meets Medical Applications. As the inventor of PEEK, Victrex delivers consistent quality at a competitive price. VICTREX 450G™ PEEK is widely utilized by leading global brands for injection molding and extrusion processes. Their PEEK-CLASSIX™ series is specifically engineered for short-term contact (up to 30 days), making it ideal for surgical instruments and temporary implants.
Ensinger – European Craftsmanship in Semi-Finished Products Ensinger specializes in providing semi-finished forms such as rods and sheets, making it an ideal choice for low production volumes that require CNC machining, thereby eliminating the need for costly injection molding investments. TECAPEEK MT Natural combines the outstanding performance of standard PEEK with biocompatibility, making it suitable for medical applications. TECAPEEK MT CF30, reinforced with 30% carbon fiber, is among the highest-strength medical-grade PEEK materials available on the market.
Evonik – German Engineering and 3D Printing Innovation. Evonik, a leader in high-performance polymer technology, brings over 30 years of experience in medical devices. Their notable achievement is pioneering 3D-printed PEEK for implant-grade applications, compliant with ASTM F2026 standards. The VESTAKEEP Fusion series incorporates biphasic calcium phosphate additives that promote bone integration, making it one of the most functionally advanced PEEK materials available today.
2Comparison of the Three Primary PEEK Manufacturing Methods: Injection Molding, CNC Machining, and 3D Printing
Choosing the right manufacturing method is crucial for successful PEEK OEM production. Each process offers distinct advantages, so the key is to select the one that best aligns with your product requirements.
Injection molding is ideal for high-volume production, typically exceeding 5,000 units per year. The initial investment in molds is substantial, ranging from approximately USD 3,000 to USD 15,500; however, the per-unit cost is the lowest among manufacturing methods. PEEK injection molding requires specialized equipment, operating with barrel temperatures between 380°C and 400°C, while mold temperatures are maintained between 150°C and 200°C. The material cost for a single spinal fusion cage is approximately USD 1.50 to USD 2.50, with a processing time of only 2 to 3 minutes per part.
CNC machining is the most flexible manufacturing option, ideal for small batches of fewer than 1,000 units per year or for producing complex geometries. It does not require mold investment, and design modifications can be implemented relatively easily. However, material waste can be significant, typically ranging from 60% to 80%, and the machining time per unit is relatively long, between 30 and 120 minutes. The total cost of producing a spinal fusion cage using CNC machining typically ranges from $25 to $47 per piece.
3D printing is an emerging technology particularly well-suited for customized implants. It excels at producing complex structures that cannot be created using traditional methods, such as porous designs, and can achieve material utilization rates as high as 95%. However, the equipment is very expensive, with costs of approximately USD 625,000, and slow print speeds (10–20 mm³ per hour).
Process Comparison
Injection Molding
CNC Machining
3D Printing
Initial Investment
High
Low
Very High
Per-Unit Cost
Lowest
High
Medium
Minimum Batch Size
5,000 units
1 unit
1 unit
Design Flexibility
Medium
High
Very High
Lead Time
12–16 weeks
2-4weeks
1-2weeks
Dimensional Accuracy
±0.05mm
±0.02mm
±0.1mm
Table 4: Comparison of the Three Primary PEEK Manufacturing Methods — Injection Molding, CNC Machining, and 3D Printing
3Turnkey CNC Machining Solutions for PEEK Materials
As specialists in PEEK processing, YSF MEDICAL brings over 30 years of experience and a comprehensive quality management system. We provide a one-stop professional CNC machining solution for PEEK, encompassing everything from material selection and specialized processing environments to in-process quality inspection and final surface finishing. Every step adheres to medical-grade standards, ensuring the highest levels of reliability and service quality for our clients.
In the field of medical materials, certain innovations have the potential to transform treatment possibilities. PEEK (Polyether Ether Ketone) is one of them, a high-strength, corrosion-resistant polymer renowned for its exceptional biocompatibility. Over the past decade, it has emerged as a quiet leader in orthopedic and dental applications. While titanium alloys symbolize the era of traditional metals, PEEK heralds the dawn of a new chapter in advanced polymer materials.
1Applications of PEEK in the Medical Industry
Globally, spinal surgery represents the largest application area for PEEK. The most common products are interbody fusion cages and artificial discs. These devices must withstand high compressive and shear forces while remaining clearly visible in imaging studies such as X-rays and MRIs. Unlike traditional metal implants, PEEK does not produce imaging artifacts, enabling physicians to monitor bone healing more accurately during postoperative follow-up.

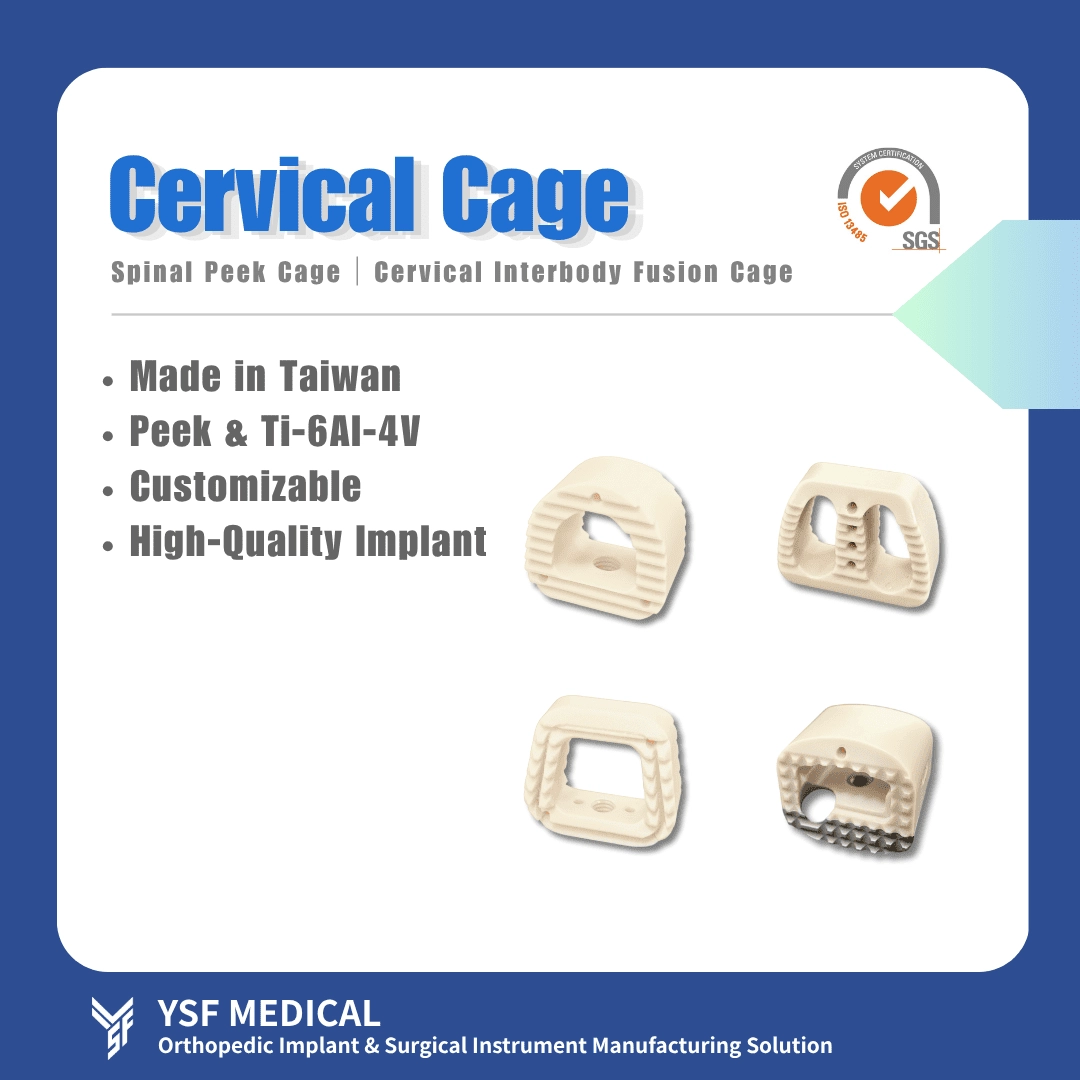

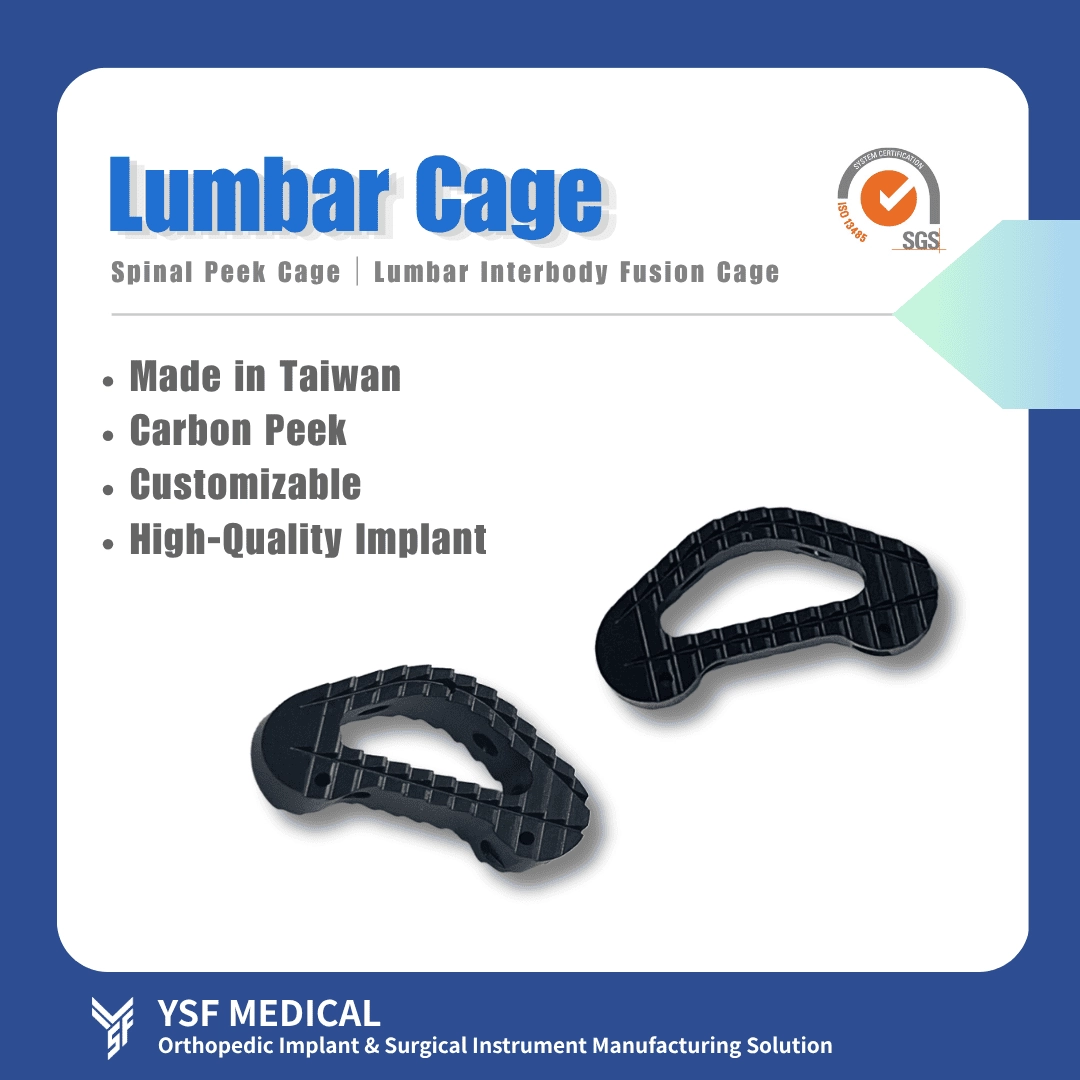

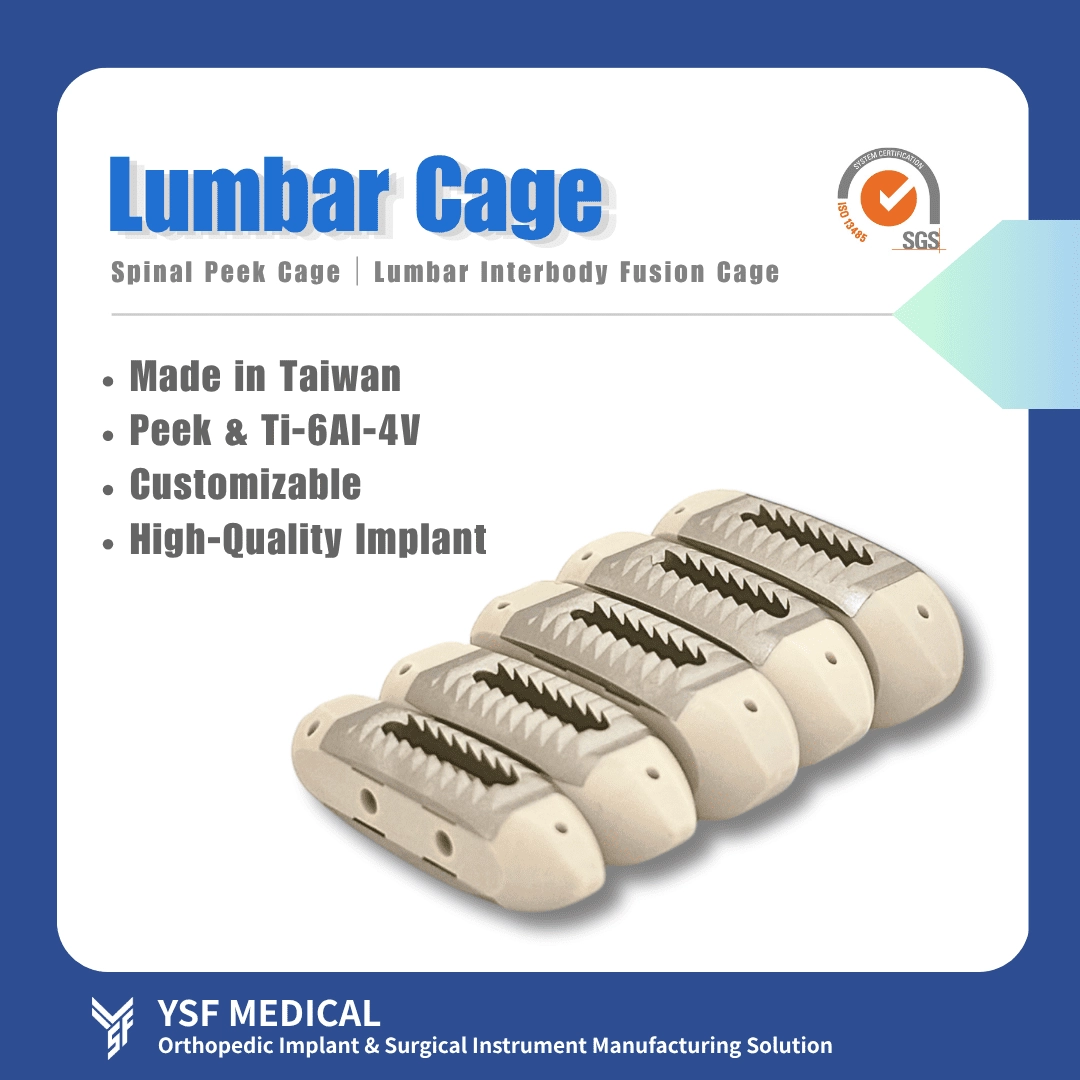

PEEK is the most widely used biomaterial for interbody fusion, comprising 50% of all such devices. The global PEEK spinal implant market continues to grow steadily, suggesting that within the next decade, nearly every orthopedic spine department will collaborate extensively with PEEK implants.
Beyond spinal applications, PEEK demonstrates significant potential in trauma fixation, craniofacial reconstruction, and dental implants. Notably, carbon fiber-reinforced PEEK (CF-PEEK) provides effective solutions for high-load applications by maintaining an elastic modulus similar to that of bone while substantially enhancing material strength.
2Clinical Evidence Supporting the Effectiveness of PEEK Fusion Devices
Multiple clinical studies have confirmed the efficacy and safety of PEEK in spinal fusion surgeries. These findings provide robust scientific evidence supporting the clinical use of PEEK fusion devices and have driven ongoing advancements in related manufacturing technologies.
A prospective randomized controlled study compared PEEK cages with autologous bone grafts in posterior lumbar interbody fusion (Lin et al., 2016). The study demonstrated successful radiographic fusion in all patients. After following 69 patients for at least two years, the results confirmed the reliability of PEEK cages in treating lumbar degenerative disorders.
Another study evaluated the use of large PEEK cages in biportal endoscopic lumbar interbody fusion. The findings demonstrated favorable clinical outcomes and high fusion rates. Large PEEK cages (Kim et al., 2025) may enhance stability and reduce the risk of subsidence.
To enhance bone integration, researchers have developed porous PEEK cages (Torstrick et al., 2017). Clinical studies demonstrate that bone ingrowth on porous PEEK surfaces is comparable to that on porous titanium, with fixation strength twice that of smooth PEEK implants. This innovative technology significantly improves the biological performance of PEEK fusion devices.
3 YSF MEDICAL is an expert in PEEK CNC Processing
YSF MEDICAL has advanced capabilities in precision machining of PEEK, including the production of carbon fiber-reinforced PEEK (CF-PEEK) to meet specialized clinical requirements. We offer customized sizes and angles for various applications, and through rigorous process control and quality management, we ensure our products meet clinical standards for both imaging visibility and osseointegration.
When evaluating an OEM supplier for PEEK implants, procurement and R&D teams frequently encounter practical questions. These concerns typically focus on lead times, quality validation, minimum order quantities (MOQ), processing risks, and cost assessment. Below, we outline five key points to help you identify the most suitable manufacturing partner more efficiently.
1. What is the expected lifespan of PEEK implant devices?？
According to clinical research, implants made from PEEK typically have an expected lifespan of 15 to 25 years or longer. Due to its excellent biostability and fatigue resistance, PEEK can effectively withstand the repeated stresses generated by daily human activity. In spinal fusion applications, PEEK interbody fusion cages demonstrate a long-term success rate exceeding 90%, underscoring their exceptional clinical performance. However, the actual lifespan can be influenced by factors such as patient age, bone quality, activity level, and adherence to physician recommendations. Compared to metal implants, PEEK’s elastic modulus is closer to that of natural bone, which helps reduce stress shielding and may further extend the implant's longevity.
2. What is the typical lead time for PEEK materials or implants, and how can the prototyping process be expedited?
Generally, the lead time for medical-grade PEEK raw materials or customized implants is approximately 8 to 12 weeks. This extended lead time is due to the stringent quality standards and regulatory requirements that medical-grade materials must meet, as well as the relatively concentrated supply chains. Consequently, lead times are longer than those for industrial-grade materials.
Strategies to reduce prototyping time include：
Choosing CNC manufacturers with rapid prototyping capabilities that can deliver small batches of samples within 2 to 4 weeks.
Utilizing the existing inventory of standard rods or sheets to eliminate delays associated with injection molding.
Planning material requirements in advance and initiating the procurement process during the design phase.
Considering the use of test-grade materials for initial verification, followed by ordering medical-grade materials once the design is validated.
3. How can the authenticity and quality of PEEK materials be verified?
Medical-grade PEEK is typically three to five times more expensive than industrial-grade PEEK, making material verification essential.
Recommended verification methods include:
Requesting the supplier's complete Certificate of Analysis (COA) and batch traceability documentation.
Checking Compliance with ASTM F2026 Standard
Confirming the Validity of ISO 10993 Biocompatibility Test Reports
Using Differential Scanning Calorimetry (DSC) to verify the melting point (~343°C) and assess crystallinity.
Performing FTIR spectroscopy to confirm the chemical structure.
When necessary, commission a third-party laboratory accredited to ISO 17025 for verification.
4. What is the typical minimum order quantity (MOQ) for PEEK implants?
The minimum order quantity (MOQ) varies significantly depending on the manufacturing method.
CNC Machined Parts: Typically produced in quantities of 10 to 50 units, making them ideal for prototyping and small-batch production.
Injection Molded Parts: Due to the high cost of mold investment, the minimum order quantity (MOQ) is generally 3,000 to 5,000 units or more.
3D Printed Parts: Offers the most flexible minimum order quantity (MOQ), accommodating single units or small batches; however, the per-unit cost tends to be relatively high.
For development-stage projects, it is advisable to negotiate staged orders or shared mold-cost arrangements with your supplier to minimize initial investment risk.
5. What are the common causes of PEEK processing failures?
Although PEEK offers excellent performance, its processing demands high technical precision. Common causes of failure include:
Improper moisture control: Material moisture content above 0.1% can lead to porosity or cracking during processing.
Poor temperature management: Processing temperatures must be precisely maintained between 380°C and 400°C; uneven heating can cause stress concentrations.
Insufficient stress relief: Inadequate annealing can result in deformation or fractures during use.
Incorrect tooling: Especially for CF-PEEK, specialized tools must be used and replaced regularly to ensure optimal performance and prevent material damage.
Environmental contamination: Metal ion contamination can compromise biocompatibility.
Choosing YSF MEDICAL guarantees reliable, certified PEEK processing and expert manufacturing. Please send your requirements to sales@ysfbone.com to receive a customized solution.
The PEEK market in orthopedic implants is expanding rapidly. With its bone-like elastic modulus, excellent biocompatibility, and radiolucency, PEEK is redefining implant standards. However, while these material advantages provide a strong foundation, precise manufacturing and rigorous quality control ultimately determine product performance.
YSF MEDICAL has over 30 years of experience in precision orthopedic medical device manufacturing. We specialize in medical-grade PEEK CNC machining and complex geometry fabrication, providing comprehensive OEM services from material verification to surface finishing. This ensures consistent, reliable products in every batch. Whether producing prototypes, small batches, or mass production runs, our data-driven process management helps clients accelerate time-to-market and minimize R&D risks.
Choosing an OEM partner with strong technical expertise and stable production capacity is essential for the success of PEEK implants. Please contact us at sales@ysfbone.com. Our professional team will respond within 24 hours to provide an appropriate manufacturing solution and help your product successfully enter the global medical device market.
This content is intended for reference by medical professionals and the healthcare industry. Some information is sourced from publicly available materials or expert opinions and may be incomplete or require further verification. Feedback and professional discussion are encouraged.
Important Reminder: Any medical diagnosis or treatment decisions should be based exclusively on the professional judgment of qualified clinicians. Patients should not make medical decisions solely on the information provided in this document.
Sclafani, J. A., & Kim, C. W. (2021). Polyetheretherketone (PEEK) cages in cervical spine surgery: A systematic review. Global Spine Journal, 11(1_suppl), 47S–54S. https://pubmed.ncbi.nlm.nih.gov/33555365/
Stull, J. D., Mangan, J. J., Vaccaro, A. R., & Hilibrand, A. S. (2016). PEEK versus titanium cages in posterior lumbar interbody fusion. BMC Musculoskeletal Disorders, 17, 374. https://doi.org/10.1186/s12891-016-1237-y
Alvi, M. A., Goyal, A., Kerezoudis, P., et al. (2025). Long-term outcomes of PEEK versus titanium cages in lumbar fusion: A multicenter analysis. Journal of Neurosurgery: Spine. Advance online publication. https://pubmed.ncbi.nlm.nih.gov/40195637/
