Overview of Ti-6Al-4V Titanium Alloy: Core Properties and Applications
This article highlights the critical importance of medical-grade Ti-6Al-4V titanium alloy in orthopedic implants, emphasizing its high strength, excellent corrosion resistance, and superior biocompatibility. It also outlines its clinical applications in spinal fixation systems, trauma orthopedics, craniofacial reconstruction, and dental restoration. The discussion focuses on three core material properties and their related manufacturing challenges, including tool wear, complex geometries, surface consistency, quality traceability, and cost efficiency. It also highlights YSF Medical’s comprehensive solutions and extensive experience in mass production, precision machining, stable surface treatment, deep-hole drilling, and the fabrication of complex geometric structures. This article serves as a reference for R&D teams, procurement departments, clinical collaborators, and international OEM project evaluators, helping medical device brands achieve the optimal balance among safety, usability, compliance, and time-to-market.
Table of Contents
-
Understanding Ti-6Al-4V Titanium Alloy: Background, Benefits, and Clinical Value
-
Three Key Properties of Ti-6Al-4V Titanium Alloy and Their Clinical Advantages
-
Global Standards and Quality Management: Ensuring the Reliability of Ti-6Al-4V Titanium Alloy
-
Clinical Case Studies: How Ti-6Al-4V Titanium Alloy Improves Surgical Outcomes and Safety
-
Manufacturing Challenges and Solutions: A Complete Guide to Ti-6Al-4V Titanium Alloy Processing
-
Frequently Asked Questions (FAQs) About Ti-6Al-4V Titanium Alloy: Expert Insights
-
Conclusion and Outlook: Future Clinical and Manufacturing Potential of Ti-6Al-4V Titanium Alloy
-
1. Understanding Ti-6Al-4V Titanium Alloy: Background, Benefits, and Clinical Value
In the history of orthopedic medical device development, material selection has been a critical factor in determining success or failure. According to the Medical Device Act (Ministry of Health and Welfare, 2020), medical devices must not only provide structural support but also meet stringent standards for biocompatibility and long-term stability. From the early widespread use of stainless steel to the subsequent adoption of cobalt-chromium alloys, surgeons and engineers have consistently sought materials that combine strength, corrosion resistance, biocompatibility, and durability. The emergence of Ti-6Al-4V titanium alloy has offered a near-ideal solution to this challenge.

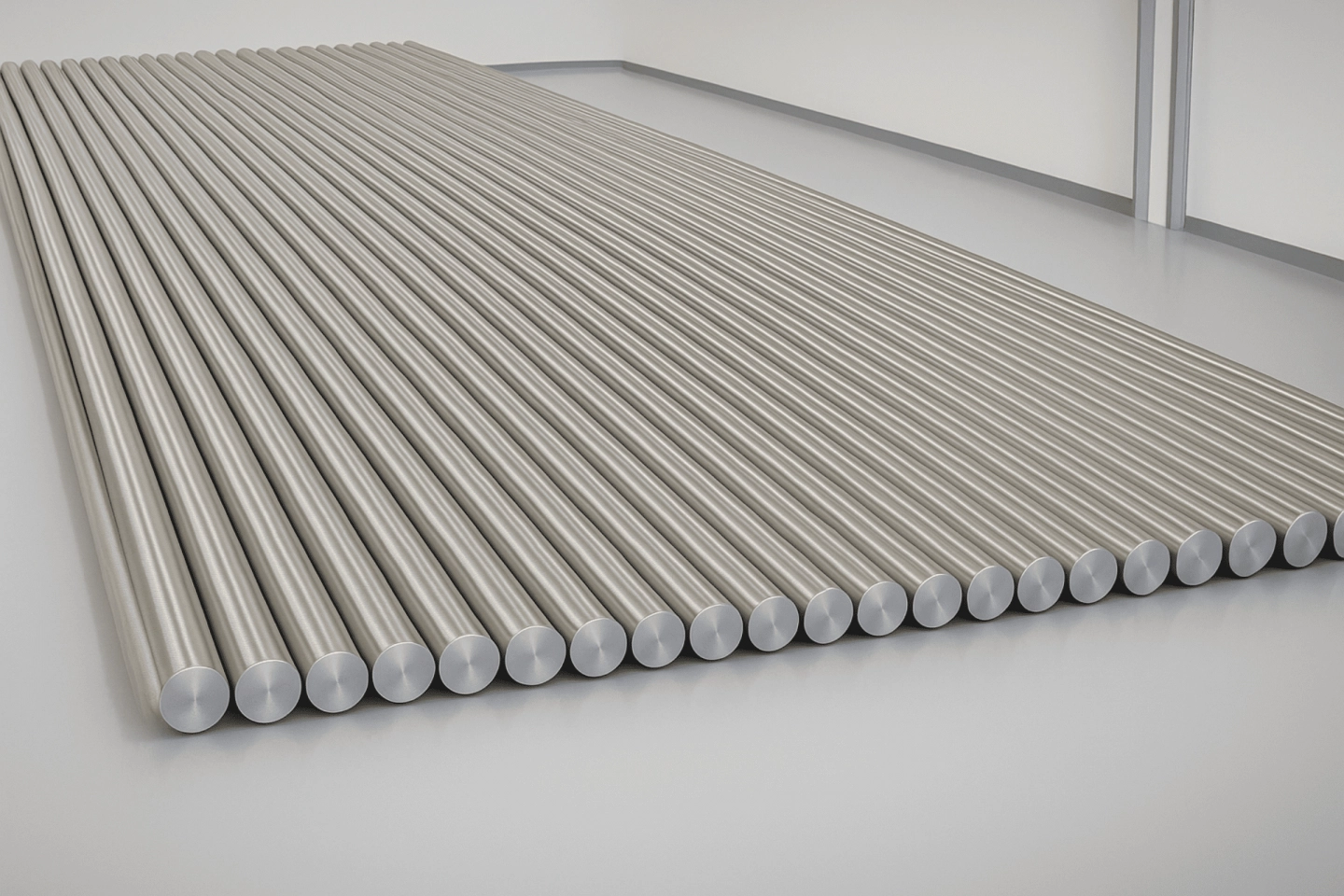

Ti-6Al-4V is an alloy composed of titanium, aluminum, and vanadium. Aluminum increases the alloy's strength, while vanadium enhances ductility and fatigue resistance, achieving an optimal balance between mechanical performance and biocompatibility. Among its variants, the ELI (Extra Low Interstitial) grade was specifically developed for medical applications. By rigorously controlling interstitial elements such as oxygen, carbon, nitrogen, and hydrogen, the ELI grade maintains high strength while significantly improving toughness and long-term stability, making it especially suitable for permanent implants.
Clinically, Ti-6Al-4V ELI is widely used in spinal fixation systems, trauma implants, craniofacial reconstruction, and dental implants. These devices must endure continuous loading and friction from daily human activities while resisting failure due to corrosion and fatigue. Without a material capable of withstanding these long-term challenges, both physicians and patients would face significant risks.
This article offers a comprehensive analysis of the applications of Ti-6Al-4V titanium alloy in orthopedic implants. It explores the material's key properties, relevant international standards, clinical use cases, regulatory validation requirements, and the manufacturing challenges faced by producers. The objective is to help readers understand why this alloy has become a leading material in medical devices.
Three Key Properties of Ti-6Al-4V Titanium Alloy and Their Clinical Advantages
In the field of orthopedic medical devices, material selection not only determines product performance but also has a direct impact on patient outcomes. Ti-6Al-4V (ASTM F136) titanium alloy has long been considered the preferred material for orthopedic implants due to its unique combination of high strength, corrosion resistance, and excellent biocompatibility. However, these advantages also present significant manufacturing challenges. This section analyzes three key physical and chemical properties of Ti-6Al-4V, exploring both the clinical benefits and the machining difficulties associated with each.
1Mechanical Strength and Elastic Modulus
The tensile strength of Ti-6Al-4V ranges from 860 to 900 MPa, significantly surpassing that of commercially pure titanium, which ranges from 240 to 550 MPa. This superior strength allows implants to withstand the dynamic loads necessary for long-term orthopedic applications, making Ti-6Al-4V an ideal material for spinal fixation systems, bone plates, and dental implants.
Equally important, Ti-6Al-4V has an elastic modulus of approximately 110 GPa, which is significantly lower than that of stainless steel (200 GPa) and cobalt-chromium alloys (230 GPa), and closer to that of human cortical bone (20–30 GPa). This property reduces the risk of stress shielding—a condition in which overly rigid implants bear most of the load, leading to gradual bone resorption due to insufficient mechanical stimulation.
Clinical Advantages
I. Provides sufficient strength to ensure the long-term stability of the implant.
II. The elastic modulus closely matches that of natural bone, which helps maintain bone quality.
III.Suitable for high-stress implants, including spinal and joint systems.
Manufacturing Challenges
I. Due to their high strength and low thermal conductivity, titanium and its alloys cause rapid tool wear, leading to reduced machining efficiency.
2Corrosion Resistance and the Surface Oxide Layer
One of the defining characteristics of Ti-6Al-4V is its ability to spontaneously form a thin titanium dioxide (TiO₂) layer on its surface. This stable, protective film prevents corrosion in physiological environments, significantly reduces the release of metal ions, and provides excellent biocompatibility. Clinical studies have demonstrated that this property lowers the risk of chronic inflammation and allergic reactions, thereby enhancing the long-term safety of implants.
In addition, the oxide layer promotes osteoblast adhesion and proliferation, thereby enhancing the integration between the implant and bone tissue. This property is especially critical for dental implants and spinal fusion cages, where clinical success depends heavily on effective osseointegration.
Clinical Advantages
I. Its outstanding corrosion resistance makes it suitable for long-term implantation.
II. Minimizes the release of harmful ions, thereby enhancing biological safety.
III. Surface properties enhance osseointegration, thereby improving clinical success rates.
Manufacturing Challenges
The hard oxide layer increases friction and generates additional heat during machining, thereby complicating the surface finishing process.
3Biocompatibility and Tissue Response
The ELI (Extra Low Interstitial) grade of Ti-6Al-4V further reduces the content of interstitial elements such as oxygen, carbon, nitrogen, and hydrogen, thereby enhancing both toughness and biocompatibility. Its excellent bioinertness and compatibility with osteoblasts make it a widely used material in spinal fixation, craniofacial reconstruction, and dental implants.
Studies indicate that dental implants made from Ti-6Al-4V ELI can achieve clinical survival rates exceeding 90% over a 10-year period (The Ambitious Challenge of Working With Titanium). This demonstrates not only their long-term stability in vivo but also their ability to maintain osseointegration while minimizing the risk of allergic reactions or immune rejection.
Clinical Advantages
I. Highly biocompatible and well-tolerated by the human body.
II. Suitable for long-term implantation, these devices demonstrate high clinical survival rates.
III. Promotes strong interaction with bone cells, enhancing osseointegration.
Manufacturing Challenges
Combining high hardness with toughness increases the difficulty of precision machining, leading to higher production costs.
| Property | Clinical Advantages | Manufacturing Challenges |
| Mechanical Strength & Elastic Modulus | High strength suitable for long-term load-bearing; elastic modulus closely matches that of bone, reducing stress shielding | Rapid tool wear; low machining efficiency |
| Corrosion Resistance & Surface Oxide Layer | Spontaneous formation of oxide layer; excellent long-term corrosion resistance; promotes osseointegration | Hard oxide layer increases friction and heat generation; complicates surface finishing |
| Biocompatibility & Tissue Response | Excellent body tolerance, high long-term survival rates, and enhances osseointegration | High hardness and toughness increase precision machining difficulty and cost |
Summary Table: Advantages and Manufacturing Challenges of Ti-6Al-4V Titanium Alloy
4Our Perspective and Conclusion
Overall, the Ti-6Al-4V titanium alloy combines high strength, long-term corrosion resistance, and excellent biocompatibility, making it the preferred material for spinal fixation systems, dental implants, craniofacial reconstruction, and trauma orthopedic devices. These properties offer physicians and patients enhanced clinical safety and reliability. However, they also present manufacturing challenges, including rapid tool wear, difficulty in achieving consistent surface finishes, and increased overall production costs.
For many manufacturers, these challenges can pose significant barriers. For us, however, they represent a long-term focus and an area for continuous improvement. Leveraging over 30 years of experience in precision machining and our deep expertise with medical-grade Ti-6Al-4V titanium alloy, we have developed a comprehensive process planning and quality management system that consistently produces ISO 13485-compliant medical devices.
Through ongoing collaboration with international partners, we continuously learn and improve, supporting the development of high-strength spinal screws and interbody fusion devices. This has allowed us to accumulate extensive experience in specialized processes and material applications. These efforts demonstrate not merely a technological breakthrough, but our unwavering pursuit of making products more stable and reliable.
For YSF Medical, machining Ti-6Al-4V titanium alloy is not only a precision challenge but also a practice of professional responsibility and craftsmanship. We believe that only by maintaining relentless attention to detail can we truly meet the practical needs of designers and end-users, establishing ourselves as a long-term, trusted partner in the medical device industry.
3. Global Standards and Quality Management: Ensuring the Reliability of Ti-6Al-4V Titanium Alloy
In medical device manufacturing, materials with excellent intrinsic properties alone are insufficient to ensure long-term clinical safety. International standards provide a crucial foundation for quality and reliability. For Ti-6Al-4V ELI titanium alloy, ASTM F136 and ISO 5832-3 are currently the most widely recognized standards.
These standards not only define permissible chemical compositions and mechanical properties but also specify testing methods and verification procedures to ensure consistency across material batches, thereby preventing clinical failures caused by impurities or process variations.
ASTM F136
widely used in the U.S. market, enforces stricter control of interstitial elements—for example, oxygen ≤ 0.13% and hydrogen ≤ 0.012%—to ensure that implants maintain toughness and stability under long-term loading and fatigue conditions (ASTM International, 2008).
ISO 5832-3
It is primarily used in the EU and other international markets. It allows slightly higher interstitial limits—oxygen ≤ 0.20% and hydrogen ≤ 0.015%—striking a balance between safety and manufacturing flexibility (ISO, 2019).
| Parameter | ASTM F136 (ELI) | ISO 5832-3 | Notes |
| Oxygen Content | ≤ 0.13% | ≤ 0.20% | ASTM imposes stricter limits |
| Testing Condition | ≤ 0.012% | ≤ 0.015% | ASTM imposes stricter limits |
| Testing Condition | Annealed | May include forged | ASTM requirements are more stringent |
| Market Application | U.S. FDA | EU & international | Each standard serves specific regulatory markets |
Comparison Table: ASTM F136 (ELI) vs. ISO 5832-3 Standards
Strategic Implications for OEM Manufacturers. For OEM manufacturers, the most prudent strategy is to incorporate both ASTM F136 and ISO 5832-3 standards during raw material inspection and process design. This approach involves controlling oxygen and hydrogen levels according to the more stringent ASTM limits while ensuring forging feasibility in compliance with ISO requirements. By adhering to both standards throughout manufacturing, products can seamlessly access multiple markets, thereby reducing regulatory validation time for brand customers.
4. Clinical Case Studies: How Ti-6Al-4V Titanium Alloy Improves Surgical Outcomes and Safety

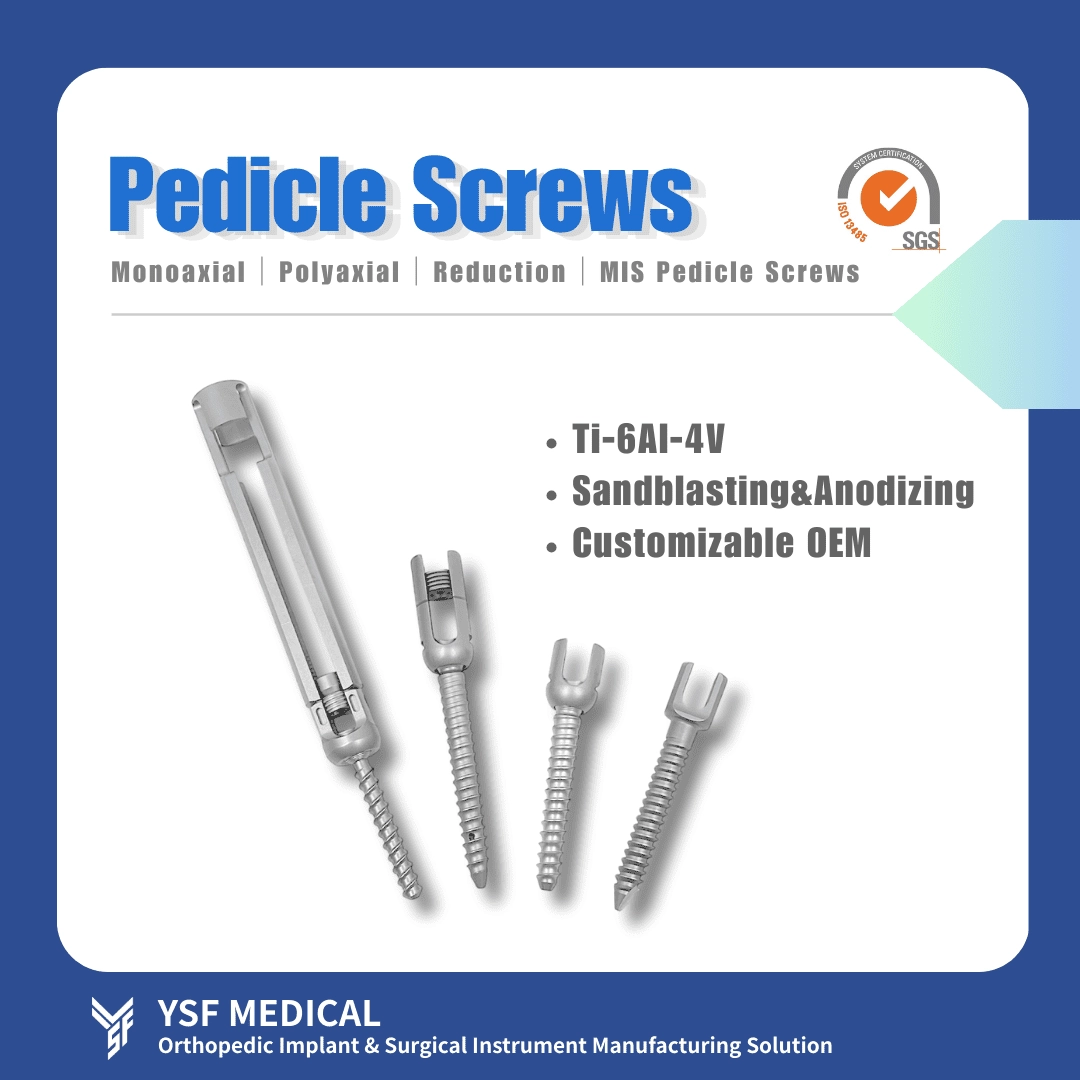

1Spinal Fixation Systems
Spinal fixation implants, including pedicle screws, interbody fusion cages, and connecting rods, must withstand the repeated stresses generated by daily human activities over the long term. Movements such as walking, bending, and even coughing impose continuous loads on these devices, requiring stable and reliable performance.
Ti-6Al-4V titanium alloy offers high fatigue strength, significantly reducing the risk of screw fracture caused by metal fatigue. Its relatively low elastic modulus also helps minimize stress shielding, thereby preserving long-term bone health. Furthermore, the ELI grade’s low interstitial element content ensures the material maintains toughness over extended implantation periods, preventing premature failure.
These properties make Ti-6Al-4V the primary material for spinal surgery implants, combining mechanical reliability with long-term biocompatibility.

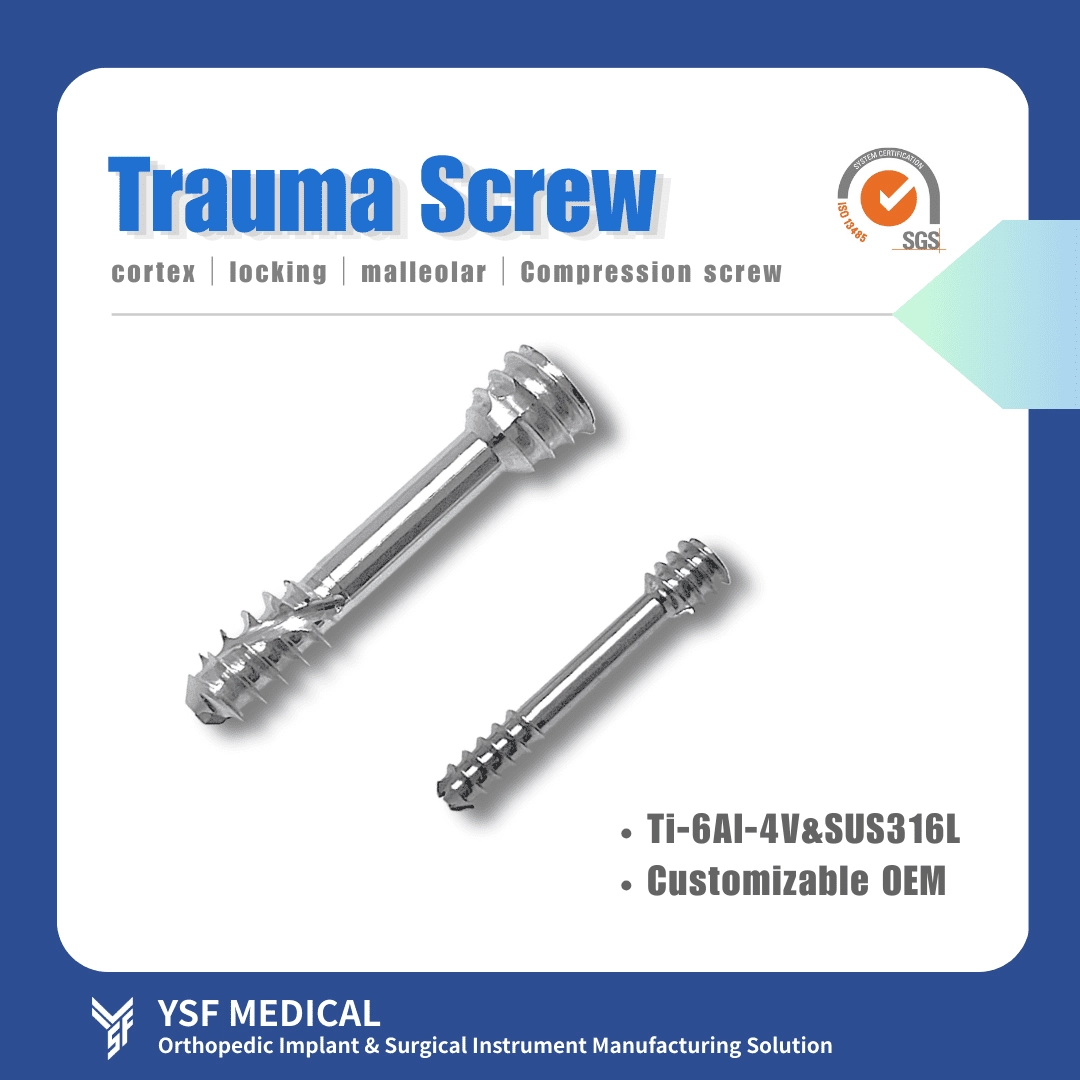

2Trauma Orthopedics
Fracture treatment often requires the use of bone plates, screws, or external fixators to maintain proper alignment of fractured bones throughout the healing process. These implants must possess high strength and corrosion resistance to endure external forces from daily activities while resisting degradation within the physiological environment.
The toughness of Ti-6Al-4V prevents bone plates from cracking under impact, while its excellent corrosion resistance ensures that long-term exposure to bodily fluids does not compromise implant stability or structural integrity. This combination allows patients greater freedom of movement during recovery without excessively restricting daily activities. For athletes and younger patients, Ti-6Al-4V implants promote faster recovery and enhance quality of life.

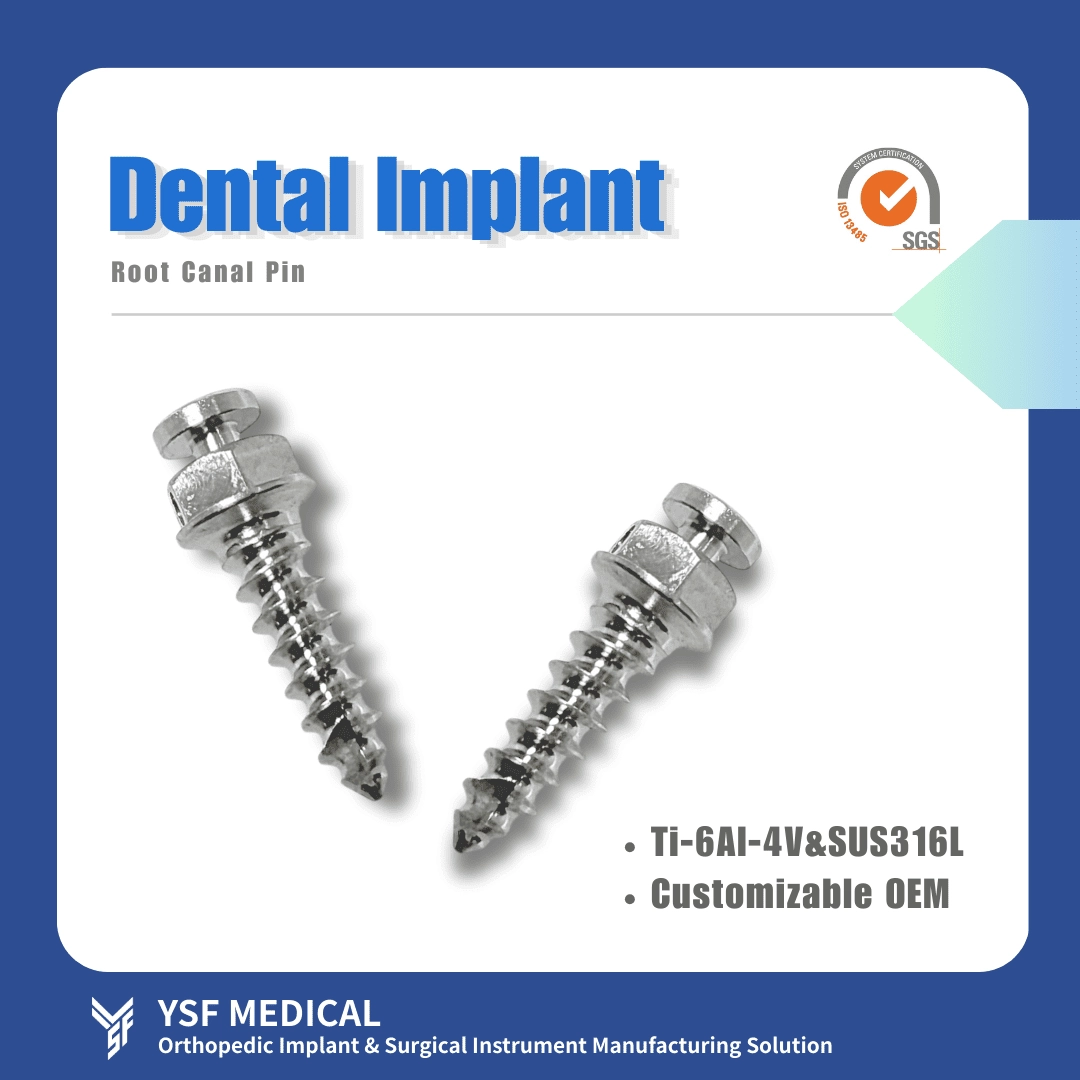

3Craniofacial and Dental Restoration
Craniofacial reconstruction often requires customized titanium meshes and plates to fill or support cranial defects, thereby protecting the brain from external trauma. These implants must offer a combination of high strength, excellent formability, and long-term biocompatibility.
In the dental field, implants endure thousands of chewing cycles daily. Ti-6Al-4V not only maintains long-term structural stability but also features a surface oxide layer that promotes osseointegration, thereby improving the clinical success rate of dental implants. Additionally, titanium alloys generate fewer imaging artifacts in MRI and CT scans, facilitating more accurate postoperative monitoring and diagnosis.
These advantages make Ti-6Al-4V the most widely used material for craniofacial reconstruction and dental applications.
5. Manufacturing Challenges and Solutions: A Complete Guide to Ti-6Al-4V Titanium Alloy Processing
In the medical device manufacturing industry, Ti-6Al-4V medical-grade titanium alloy is widely recognized as the gold standard material for orthopedic implants. However, machining this titanium alloy presents significant challenges for OEM manufacturers, requiring extensive experience, specialized expertise, and meticulous process management.
1Material Property Limitations
Ti-6Al-4V titanium alloy exhibits low thermal conductivity and high strength, which can generate excessive heat during machining, leading to rapid tool wear. This not only increases tooling and consumable costs but also negatively impacts dimensional accuracy and production efficiency.
Our solution: YSF Medical has developed and implemented patented machining cooling technology that effectively reduces cutting-zone temperatures, extends tool life, and enhances cutting stability, thereby ensuring consistent part precision and quality.
2Complex Geometrical Design
Products such as bone screws and pedicle screws often feature specialized threads and customized geometries. Machining these components presents significant challenges, especially in deep-hole drilling and precision thread cutting.
Our solution: YSF Medical leverages extensive experience and research in deep-hole machining of titanium alloys. By utilizing multi-axis CNC turning and milling, combined with specialized jig designs, we ensure hole accuracy and maintain structural integrity even at high depth-to-diameter ratios. This approach meets the stringent stability and clinical safety requirements essential for orthopedic implants.
3Surface Quality Requirements
Orthopedic and dental implants require precise surface roughness specifications. Surfaces that are too smooth can impede bone cell adhesion, whereas excessively rough surfaces may cause stress concentration.
Our solution: YSF Medical employs surface treatments, including sandblasting and electropolishing, to achieve optimal roughness and ensure consistency across production batches.
4Quality Verification Pressure
Medical OEM manufacturing must adhere to stringent dimensional accuracy and comprehensive traceability requirements, in full compliance with ISO 13485 medical device standards.
Our solution: YSF Medical has implemented a comprehensive quality management system that incorporates precision measuring instruments, including 2.5D optical measurement devices, along with thorough documentation. This approach ensures that every Ti-6Al-4V implant complies with international verification standards and enables rapid responses to audits and market demands.
5Balancing Cost and Efficiency
Ti-6Al-4V titanium alloy is expensive, and the costs associated with machining consumables and inspection are high. Therefore, manufacturers must carefully balance quality and stability with cost control.
Our solution: By leveraging process simulation, tool life optimization, and automated inspection, YSF Medical effectively reduces material waste and enhances production efficiency, enabling clients to achieve the optimal balance between quality and cost.
In addition, YSF Medical has actively participated in the Small Business Innovation Research (SBIR) program, promoted by the Ministry of Economic Affairs (SBIR official website). Through multiple R&D projects, we have achieved significant milestones, including specialized deep-hole machining techniques and applications in composite material processing. These R&D efforts not only demonstrate our commitment to innovation and practical application but also reinforce YSF Medical’s expertise in processing medical-grade titanium alloys, thereby strengthening long-term trust with international clients.
6. Frequently Asked Questions (FAQs) About Ti-6Al-4V Titanium Alloy: Expert Insights
1. How long can Ti-6Al-4V implants last in orthopedic applications?
According to clinical studies and market experience, implants made from Ti-6Al-4V typically last between 10 and 20 years or more. In dental and spinal fixation applications, they can remain stable for over 20 years. Thanks to its high fatigue strength and excellent corrosion resistance, Ti-6Al-4V can endure thousands of daily cycles of walking, chewing, or spinal movement, thereby reducing the risk of screw fracture or plate loosening. Studies indicate that dental implants made from this material achieve a success rate exceeding 90% after 10 years. However, the actual lifespan depends on factors such as patient age, bone density, lifestyle, and the presence of chronic diseases. Therefore, clinicians provide guidance tailored to individual circumstances.
2. What is the difference between Ti-6Al-4V and commercially pure titanium?
Commercially pure titanium offers excellent biocompatibility and corrosion resistance, but has lower strength, making it less suitable for high-stress, long-term dynamic loads. In contrast, Ti-6Al-4V, an alloy containing 6% aluminum and 4% vanadium, provides an optimal balance of strength and ductility. This makes it ideal for applications such as spinal screws, bone plates, and dental implants. For example, a bone plate made from pure titanium may require a thicker cross-section to achieve adequate rigidity, whereas Ti-6Al-4V maintains high strength even at smaller dimensions, minimizing interference with surrounding soft tissue. In summary, commercially pure titanium is better suited for low-load, small implants, while Ti-6Al-4V is the preferred material for high-load applications.
3. Why is the ELI version of Ti-6Al-4V used in medical devices?
Ti-6Al-4V ELI (Extra Low Interstitial) is considered the gold standard for medical applications because it strictly limits interstitial elements such as oxygen, carbon, nitrogen, and hydrogen. This reduction prevents material embrittlement caused by impurities, which is crucial for long-term implants like spinal fixation systems and dental implants that must endure millions of load cycles. Using ELI-grade material significantly reduces the risk of implant fracture over a 5–10 period.
4. Which implants most commonly use Ti-6Al-4V?
Ti-6Al-4V is used in nearly all high-load orthopedic and dental implants. Common applications include: Spinal fixation systems, including pedicle screws, interbody fusion cages, and rods. Trauma orthopedic products, including bone plates, screws, and external fixators. Craniofacial reconstruction using titanium meshes, cranial plates, and cranial screws. Dental Implants. These applications require materials that can withstand long-term mechanical stress while ensuring biocompatibility and corrosion resistance. Market data indicate that over 70% of mid- to high-end dental implants and most spinal implants worldwide use Ti-6Al-4V, underscoring why this alloy has become the default choice for medical devices.
5. Where can I find medical OEMs specializing in Ti-6Al-4V machining?
If you are seeking an OEM partner skilled in CNC machining of Ti-6Al-4V titanium alloy, Taiwanese manufacturers are highly competitive in the global market. For instance, YSF Medical is ISO 13485-certified and boasts over 30 years of precision machining experience. Their OEM capabilities encompass spinal implants, trauma orthopedic implants, and dental implants, providing a comprehensive solution from design prototyping and small-scale clinical trials to full-scale production. Partnering with YSF Medical allows medical device brands to accelerate time-to-market while ensuring compliance with international regulatory requirements.
7. Conclusion and Outlook: Future Clinical and Manufacturing Potential of Ti-6Al-4V Titanium Alloy
YSF Medical has over 30 years of experience in precision machining for orthopedic medical devices, specializing in Ti-6Al-4V ELI titanium alloy and highly biocompatible materials such as PEEK. The company is ISO 13485 certified and utilizes data-driven process management, consistent surface treatments, and advanced capabilities for complex and specialized geometries to support brands from prototyping and small-scale clinical trials through to full-scale production.
Suppose you are seeking a reliable international OEM partner that can balance quality with time-to-market. In that case, YSF Medical offers extensive cross-domain development experience and flexible production capacity to deliver tailored solutions that meet your needs.
By partnering with YSF Medical, medical device brands gain access to reliable processes, flexible production capabilities, and extensive experience collaborating with international clients, facilitating swift entry into global markets.
Contact Us: Discover the best OEM solutions for medical devices today! Complete our form or email sales@ysfbone.com, and a dedicated representative will respond within 24 hours.
8. Disclaimer
This content is intended for reference by medical professionals and the healthcare industry. Some information is sourced from publicly available materials or expert opinions and may be incomplete or require further verification. Feedback and professional discussion are encouraged.
Important Reminder: Any medical diagnosis or treatment decisions should be based exclusively on the professional judgment of qualified clinicians. Patients should not make medical decisions solely on the information provided in this document.
9. References
Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. (2009). Ti-based biomaterials, the ultimate choice for orthopaedic implants – A review. Progress in Materials Science, 54(3), 397–425.
https://doi.org/10.1016/j.pmatsci.2008.06.004
Long, M., & Rack, H. J. (1998). Titanium alloys in total joint replacement—a materials science perspective. Biomaterials, 19(18), 1621–1639.
https://doi.org/10.1016/S0142-9612(97)00146-4
Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30–42.
https://doi.org/10.1016/j.jmbbm.2007.07.001
Paital, S. R., & Dahotre, N. B. (2009). Calcium phosphate coatings for bio-implant applications: Materials, performance factors, and methodologies. Materials Science and Engineering: R: Reports, 66(1-3), 1–70.
https://doi.org/10.1016/j.mser.2009.05.001
Ezugwu, E. O., & Wang, Z. M. (1997). Titanium alloys and their machinability—A review. Journal of Materials Processing Technology, 68(3), 262–274.
https://doi.org/10.1016/S0924-0136(96)00030-1
Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. (2009). Ti-based biomaterials, the ultimate choice for orthopaedic implants – A review. Progress in Materials Science, 54(3), 397–425.
https://doi.org/10.1016/j.pmatsci.2008.06.004
Leyens, C., & Peters, M. (Eds.). (2003). Titanium and titanium alloys: Fundamentals and applications. Wiley-VCH.
https://doi.org/10.1002/3527602119
Long, M., & Rack, H. J. (1998). Titanium alloys in total joint replacement—a materials science perspective. Biomaterials, 19(18), 1621–1639.
https://doi.org/10.1016/S0142-9612(97)00146-4
Manivasagam, G., Dhinasekaran, D., & Rajamanickam, A. (2010). Biomedical implants: Corrosion and its prevention – A review. Recent Patents on Corrosion Science, 2(1), 40–54.
https://doi.org/10.2174/1877610801002010040
Zhou, W., Mahdavian, M., & Liu, R. (2019). An in-depth study of grinding technology for titanium alloys. Journal of Manufacturing Processes, 44, 1–12.
https://doi.org/10.1016/j.jmapro.2019.05.017
