Rapid Prototyping Is the Key to Accelerating Medical Device Innovation

1Definition and Core Concept

Rapid prototyping is a crucial technology that integrates digital design with advanced manufacturing techniques. By utilizing CAD models or 3D scan data, engineers can swiftly produce physical prototypes through CNC machining, 3D printing, or rapid tooling. In the medical device industry, these prototypes serve purposes beyond visual inspection; they must also provide adequate structural strength and dimensional accuracy to support engineering tests, clinical evaluations, and surgical simulations.

For R&D teams, rapid prototyping is more than just a fabrication technique; it is a comprehensive development process that integrates design thinking with engineering validation. When applied effectively, it significantly reduces development time, enhances cross-functional collaboration, and ensures that critical technical groundwork is completed before regulatory submission.


2The Value of Rapid Prototyping

In traditional medical device development, the transition from design to final product often involves lengthy mold creation and multiple adjustment cycles. Rapid prototyping eliminates this limitation by enabling design teams to obtain functional physical samples within days or weeks, facilitating immediate testing and refinement. This approach is especially valuable for highly precise or patient-specific products, such as orthopedic implants, surgical guides, and dental restorations.

With rapid prototyping, R&D teams can identify design issues early, optimize ergonomics, and validate clinical usability. This fosters an integrated development approach that transitions from concept to verification more efficiently. The result is reduced development costs, faster time to market, and enhanced product stability.


3Main Categories of Rapid Prototyping Technologies

In medical device manufacturing, rapid prototyping encompasses several primary technologies, each offering distinct advantages and suited to different application scenarios.

CNC Precision Machining
CNC (Computer Numerical Control) machining is one of the most common and reliable methods for prototyping medical devices. In orthopedic implant manufacturing, multi-axis CNC machines are widely used to perform high-precision cutting directly on metal or plastic materials to create functional prototypes. This approach is especially effective for components that require tight tolerances, such as orthopedic implants, pedicle screws, and joint parts.

Because CNC machining can utilize the same medical-grade materials used in mass production, such as Ti-6Al-4V titanium alloy, SUS316L stainless steel, and PEEK, the prototype's mechanical properties closely resemble those of the final product. This allows engineers and R&D teams to perform functional testing, fatigue evaluation, and assembly verification with greater confidence and accuracy.

According to Fictiv (2023), CNC prototyping ensures exceptional dimensional accuracy and delivers superior surface finish quality. It has become a crucial step in the manufacturing process of orthopedic implants, enabling teams to evaluate device handling, clinical stability, and manufacturability early in development.

3D Printing (Additive Manufacturing)
The greatest advantage of 3D printing lies in its ability to rapidly create prototypes with complex geometries and customized designs. Building parts layer by layer enables the production of structures without the constraints imposed by traditional cutting tools or molds. This makes 3D printing especially suitable for highly detailed and biocompatible medical applications.

Common technologies such as Selective Laser Melting (SLM), Electron Beam Melting (EBM), and Fused Deposition Modeling (FDM) are used to create patient-specific implant models and surgical guides, assisting surgeons in performing preoperative simulations and clinical planning.

Kowalewski et al. (2022) reported that additive manufacturing can significantly shorten development timelines and enhance patient-specific design workflows, thereby strengthening the integration between personalized medicine and digital manufacturing.


Rapid Tooling for Limited Trial Runs
When a medical device project requires small-batch pilot runs or functional testing, rapid tooling provides an efficient and flexible solution. In the context of orthopedic implants manufacturing, this method is often used to produce prototype components or limited-run parts that closely mimic mass-production outcomes. By utilizing aluminum or resin to create temporary molds, rapid tooling enables injection-molded or die-cast parts to be produced within just a few days, allowing engineers to simulate near-final production conditions.

Compared to traditional steel molds, rapid tooling offers lower costs, shorter lead times, and faster design iteration cycles. It is particularly valuable for evaluating material flow, surface finish, and assembly fit before full-scale production begins. For R&D and design teams in orthopedic implants manufacturing, rapid tooling serves as a vital early-stage method to validate manufacturability, reduce rework or scrap risks, and maintain product development schedules and budgets.


Hybrid Process Applications
In real-world development, a single prototyping method rarely meets all requirements. Therefore, more medical device manufacturers are adopting hybrid process strategies. A common approach involves using 3D printing to create complex structural prototypes, followed by CNC finishing to enhance dimensional accuracy and surface quality, or applying rapid tooling for molding and surface treatment testing. This hybrid method combines the advantages of multiple technologies, maintaining a balance between speed and precision.

According to RLM Industries (2024), hybrid processes have become a mainstream trend in advanced medical prototyping. These processes help shorten the development cycle while ensuring final performance and consistency in mass production, resulting in high-quality, cost-effective product development.


Table 1. Overview of Rapid Prototyping Technologies

---

3. Key Advantages of Rapid Prototyping in the Medical Device Industry

1Accelerated Time to Market

In the highly competitive medical device industry, speed to market often determines success. Rapid prototyping enables development teams to quickly transform design concepts into physical samples that can be tested for functionality and clinical performance. This accelerates the entire R&D process, facilitates more direct design adjustments, and helps teams identify issues early, before mass production begins. By incorporating real feedback from surgeons and users, companies can refine designs more efficiently and enhance regulatory readiness. Rapid prototyping has become an essential strategy for expediting medical device development and securing a competitive advantage in the market.


2Reduce Research and Development (R&D) Costs

Traditional prototype development in the medical device industry is often costly and time-consuming, placing a significant burden on startups and small R&D teams. Rapid prototyping offers a more cost-effective solution by enabling teams to produce small batches of samples at a lower cost and iterate multiple times. This flexible approach minimizes waste caused by design errors and reduces the need for mold development and fixture fabrication. For medical startups, research institutions, and specialized clinical applications, rapid prototyping offers an affordable platform to validate concepts, refine designs, and enhance overall development efficiency and return on investment (ROI).


3Design Flexibility and Fast Iteration

Design changes are an inevitable part of developing medical devices, especially in the manufacturing of orthopedic implants and the design of surgical instruments. The greatest advantage of rapid prototyping is its flexibility to support continuous design adjustments and iterative improvements. Engineers can quickly refine dimensions, surface treatments, structural features, or assembly interfaces based on surgeon feedback or clinical insights without disrupting the overall development schedule.

Through this agile process, teams can evaluate multiple design iterations within a short timeframe, ensuring the final product meets both functional performance and clinical usability standards. According to Kaleidoscope Innovation (2023), rapid prototyping has become a critical enabler of innovation efficiency and design precision in modern orthopedic implant manufacturing, helping manufacturers accelerate time-to-market while maintaining regulatory compliance and quality consistency.


4Strengthen Collaboration with Stakeholders

Medical device development involves multiple stakeholders, including engineering teams, surgeons, clinical advisors, and investors. In orthopedic implants manufacturing, rapid prototyping turns abstract design concepts into tangible models that are easier to understand and evaluate. This improves communication among teams and enables surgeons to provide practical and actionable feedback based on real clinical scenarios.

For investors and decision-makers, reviewing a physical prototype builds trust and strengthens confidence in the project's potential. When all stakeholders can examine the same functional sample, discussions about feasibility, risks, and manufacturability become more efficient and aligned. This collaborative approach ensures that every stage of orthopedic implants manufacturing stays closely connected to clinical needs and market expectations.


5Enhanced Regulatory Preparedness

Medical devices must undergo rigorous regulatory reviews and clinical validation. Rapid prototyping enables the creation of functional samples early in the development process, allowing companies to conduct feasibility testing and pre-clinical evaluations that align with regulatory requirements. This early preparation reduces the risk of failure during later validation stages and helps accelerate certification timelines. By utilizing rapid prototypes, manufacturers can identify potential design issues sooner and begin preparing technical documentation and risk assessments in advance. This approach establishes a stronger foundation for FDA 510(k) or MDR submissions. According to MPO Magazine (2025), this strategy enhances regulatory efficiency and reflects a more mature approach to quality management and compliance.

---

4. Practical Application Examples

Rapid prototyping plays a crucial role in multiple stages of medical device development. In orthopedic implant manufacturing, it helps transform design concepts into functional parts more quickly and with greater precision. The following three examples illustrate how rapid prototyping enhances product development efficiency and improves real-world clinical usability.

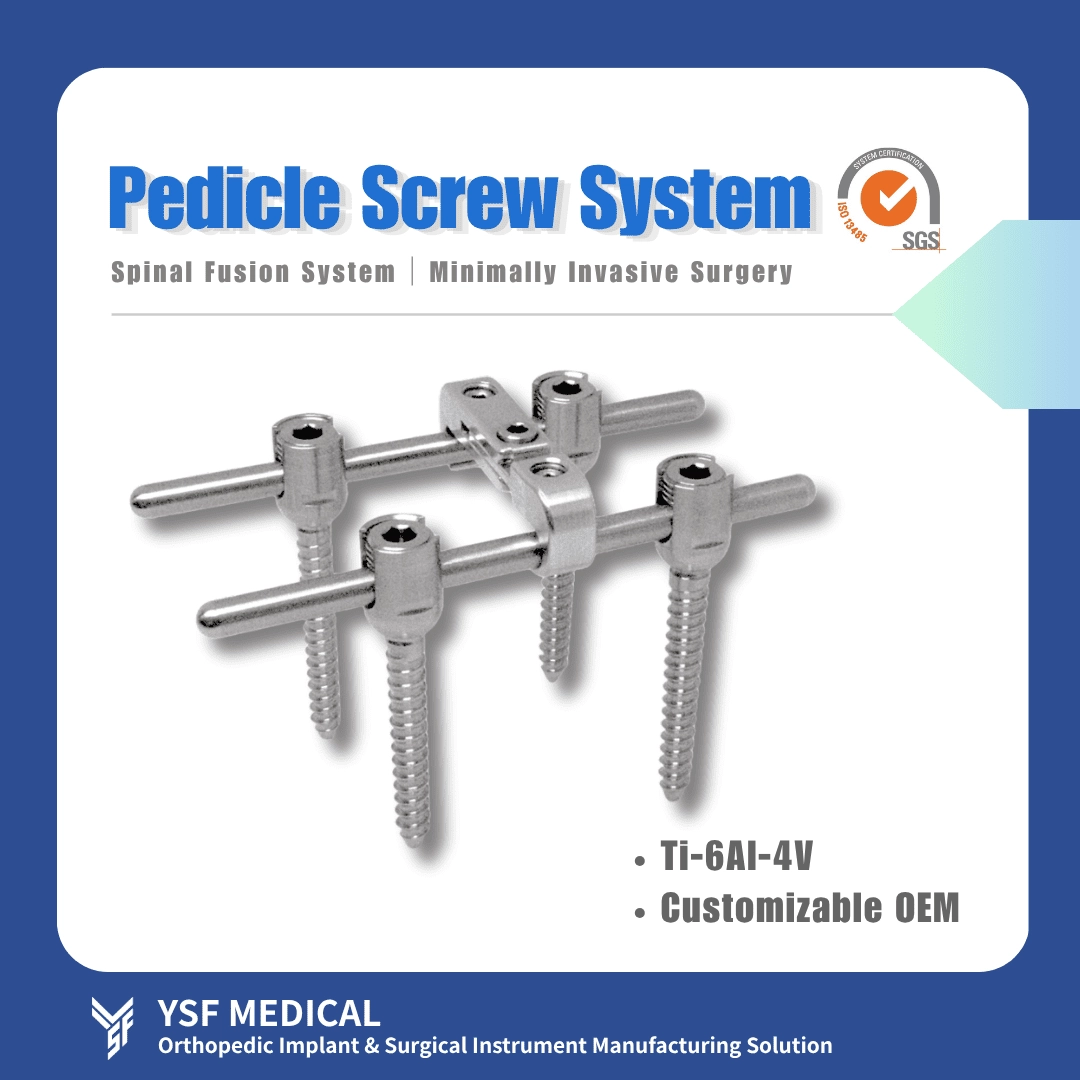

1Geometry Optimization of Spinal Fusion Systems

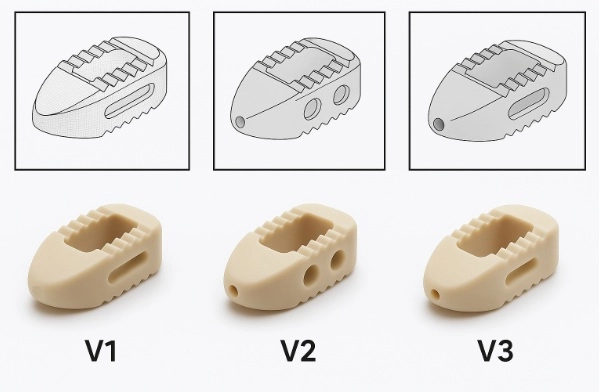

The design of an interbody fusion cage must provide structural support, promote bone integration, and ensure stable fixation within a very limited disc space. To accommodate different spinal levels and patient needs, engineers must continuously adjust variables such as height, angle, porosity, and surface texture to optimize fusion performance and surgical usability. With rapid CNC prototyping, development teams can produce multiple Ti-6Al-4V titanium alloy prototypes within days for biomechanical testing and surgeon handling evaluations. This process enables the clinical team to provide immediate feedback, allowing the engineering team to quickly refine the geometric design based on actual test results.



Early Identification of Potential Issues
After incorporating feedback and making targeted design refinements, the team can rapidly produce improved versions, significantly reducing the time from initial design to clinical validation. In some projects, rapid prototyping has even enabled brands to identify structural weaknesses before submitting products for regulatory review, preventing major issues during verification and saving months of development time as well as substantial engineering costs (Kaleidoscope Innovation, 2023).



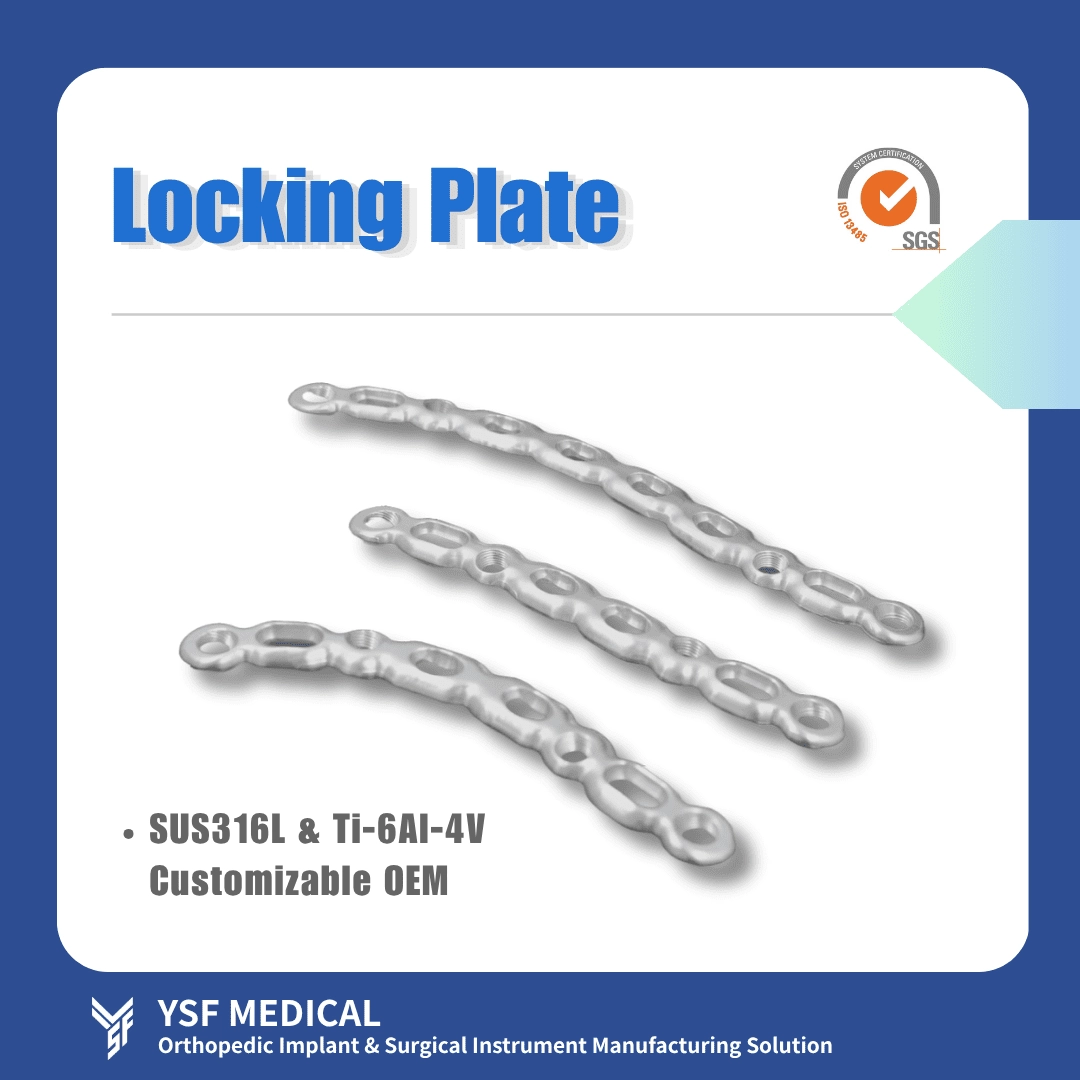

2Functional Verification of Trauma Bone Plates and Screws

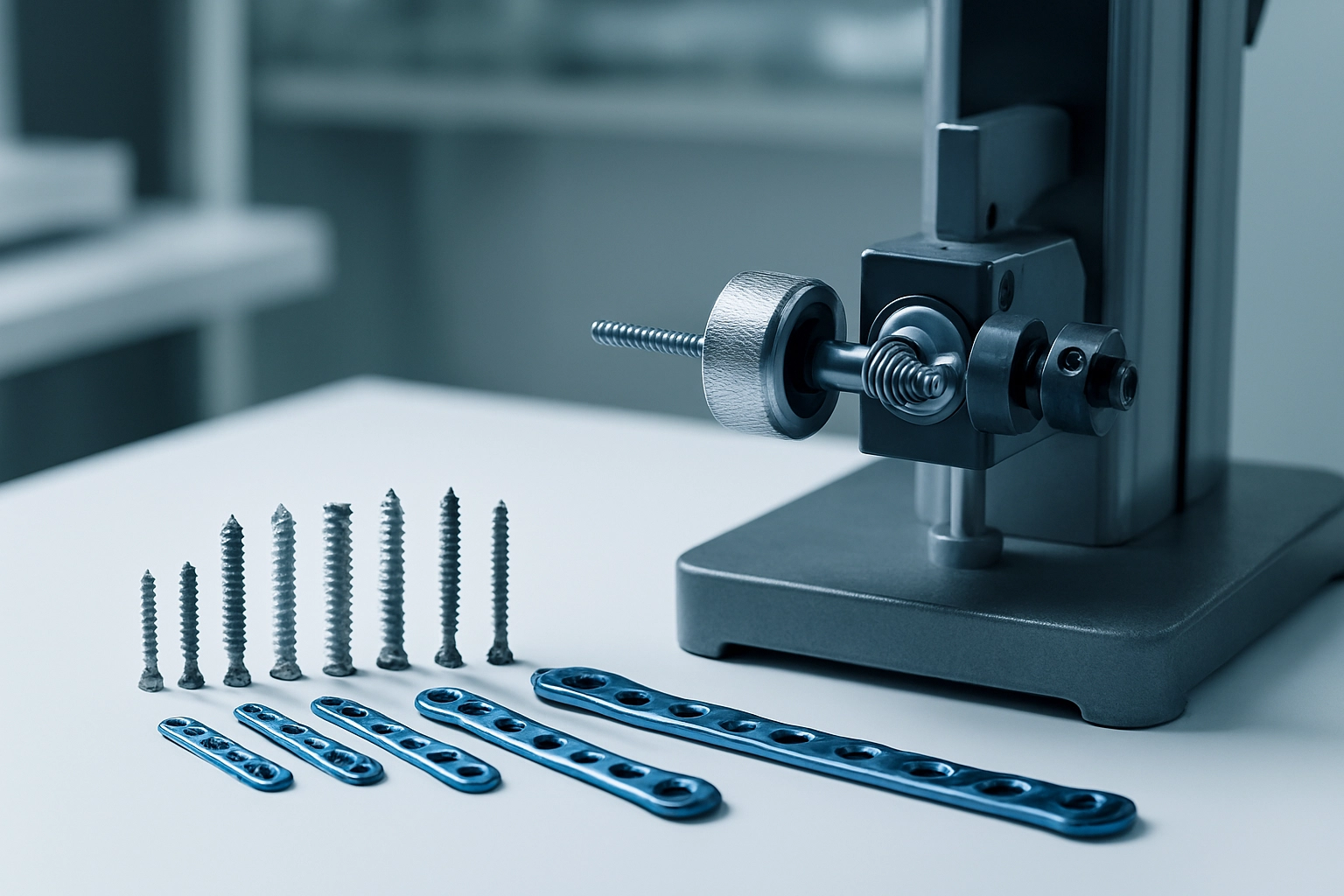

Trauma implants, such as bone plates and screws, must stabilize fractures while withstanding repetitive loads from daily patient movement. In orthopedic implant manufacturing, design teams focus on ensuring that thread geometry provides strong fixation without creating stress concentrations that could impair bone healing or lead to screw loosening.
Rapid prototyping enables engineers to evaluate these factors early in the development process. By creating physical samples during each design iteration, teams can quickly test how different geometries affect fixation strength and biomechanical performance. This data-driven approach helps define optimal design parameters more efficiently and reduces the risk of costly revisions later in production.



Mechanical Performance Testing
During the early development stage, engineers produce multiple metal prototypes featuring various thread designs using CNC precision machining. These prototypes undergo torque, tensile, and cyclic fatigue tests to assess fixation performance across different bone quality conditions. The resulting test data serves as a critical reference for design optimization, enabling engineers to refine thread depth, angle, and pitch to ensure both stability and safety in clinical applications. According to research from Pacific Research Laboratories (n.d.), early-stage physical verification significantly reduces failure rates in clinical trials and accelerates time to market.

Anatomical Fit Evaluation

Beyond mechanical validation, rapid prototyping is extensively used to assess anatomical fit and handling performance in orthopedic implant manufacturing. By producing physical prototypes and assembling them with 3D-printed bone models, surgeons can directly observe whether the plate curvature and hole positioning meet clinical requirements across various bone segments. This hands-on interaction enables surgeons to provide precise, actionable feedback, allowing R&D teams to refine designs efficiently and accurately.
Through this rapid and visual evaluation process, products achieve both functional and ergonomic optimization before entering mass production. This proactive approach minimizes post-market design revisions, enhances clinical reliability, and improves the overall user experience for both surgeons and patients.



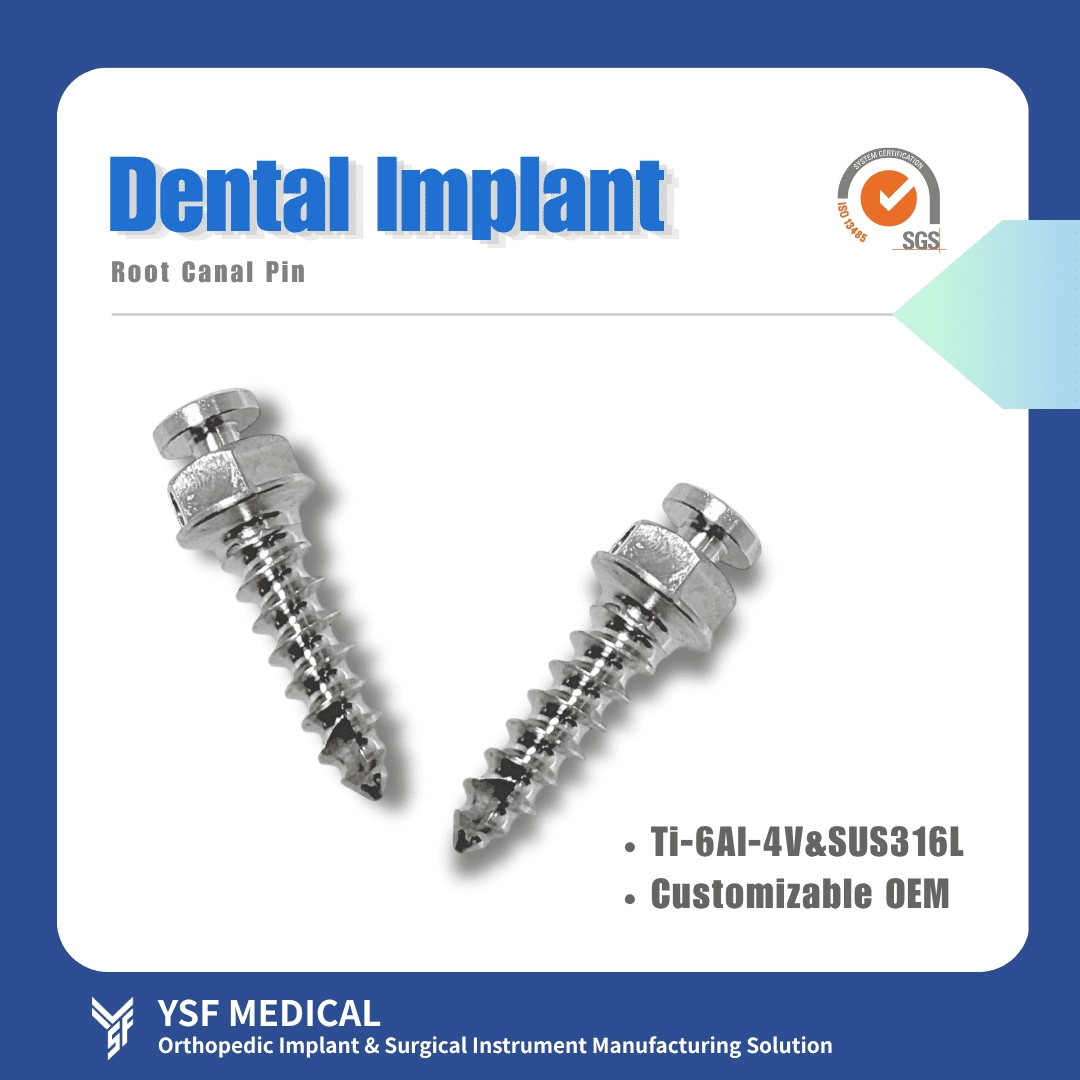

3Customized Designs for Cranial Reconstruction and Dental Implants

In cranial reconstruction and dental implant applications, personalized design is crucial for clinical success. Because each patient’s cranial structure and alveolar bone anatomy are unique, standardized components often fail to achieve a precise fit and must be customized based on individual anatomical data.

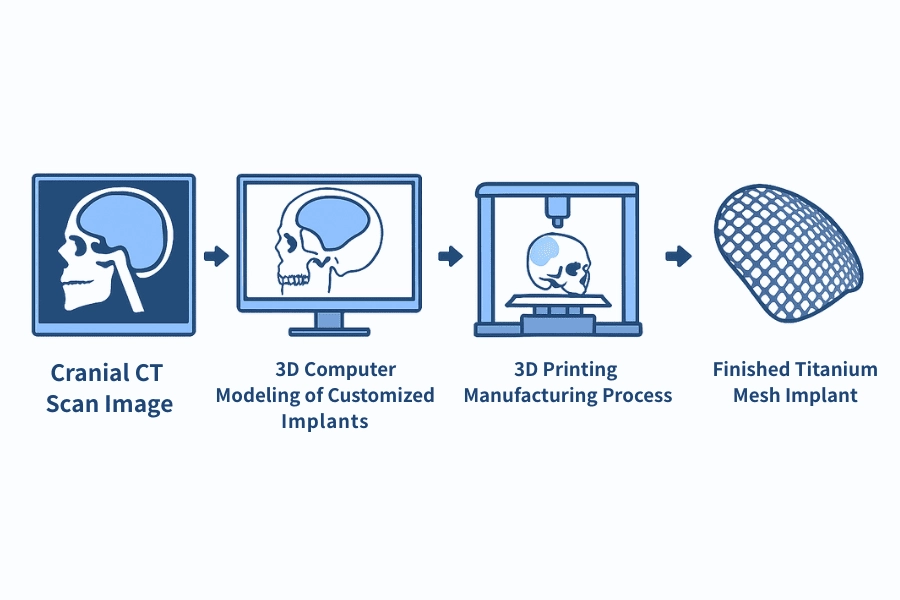

For example, in cranial repair, mesh implants or bone plates must be modeled using CT or MRI scan data. These 3D models are then optimized with design software to ensure geometric accuracy and structural integrity.
Rapid prototyping allows for immediate verification of mechanical stability and surgical feasibility throughout the design process. This ensures that the implant not only meets functional requirements but also achieves an optimal aesthetic outcome in real clinical settings.

Preoperative Planning and Simulation

With 3D printing technology, manufacturers can utilize patient imaging data to rapidly produce high-precision, customized prototypes. These physical models assist surgeons in preoperative planning and simulation. By accurately depicting bone defects and implant locations, surgeons can confirm fixation points, screw orientation, and surgical approaches before entering the operating room. According to Kowalewski et al. (2022), using rapid prototyping models for preoperative simulation significantly reduces operation time and intraoperative errors, thereby enhancing surgical safety and overall success rates. This approach also fosters collaboration between engineering and clinical teams, facilitating the practical development of personalized medical solutions in implant design.
